Product Details
- Weight
- 5.9 kg.
- Power supply
- 12 V
24 V
- Power output
- 10 W
- Typology
- Radome
- Model
- Halo20
- Original Ref.
- 000-14543-001
- Series
- Halo
- Wifi
- No
- Other links
- Network cable
- Radar technology
- Pulse compression
- Radar range
- 24 miles
- Dimensions Ø/h
- 510 x 223 mm.
- Energy consumption
- 20 W
- Double interval
- No
- Radar overlay on map
- Yes
- Target Track
- No
- Auto gain
- Yes
- MARPA
- Yes (requires a direction sensor
sold separately)
- Maximum wind speed
- 100 knots
- Flock detection
- Yes
Description

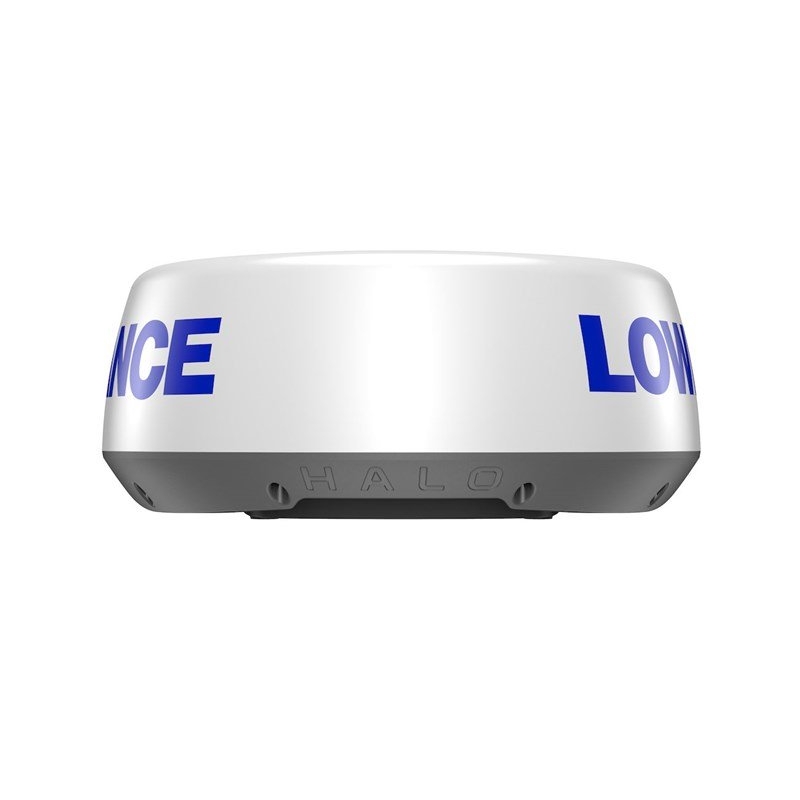

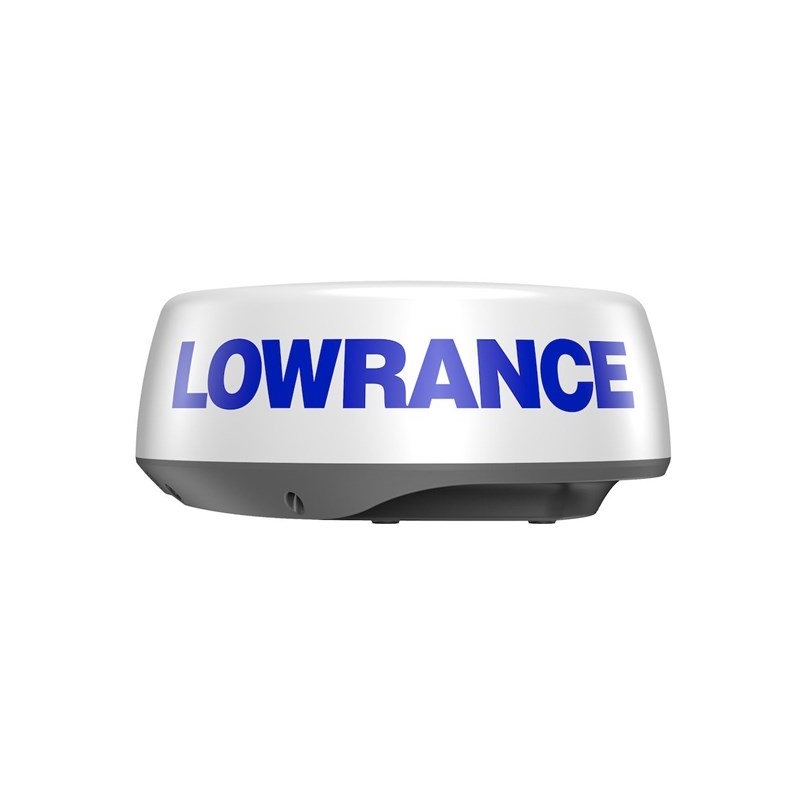

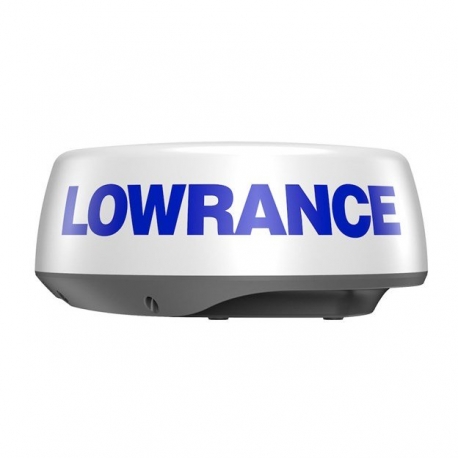

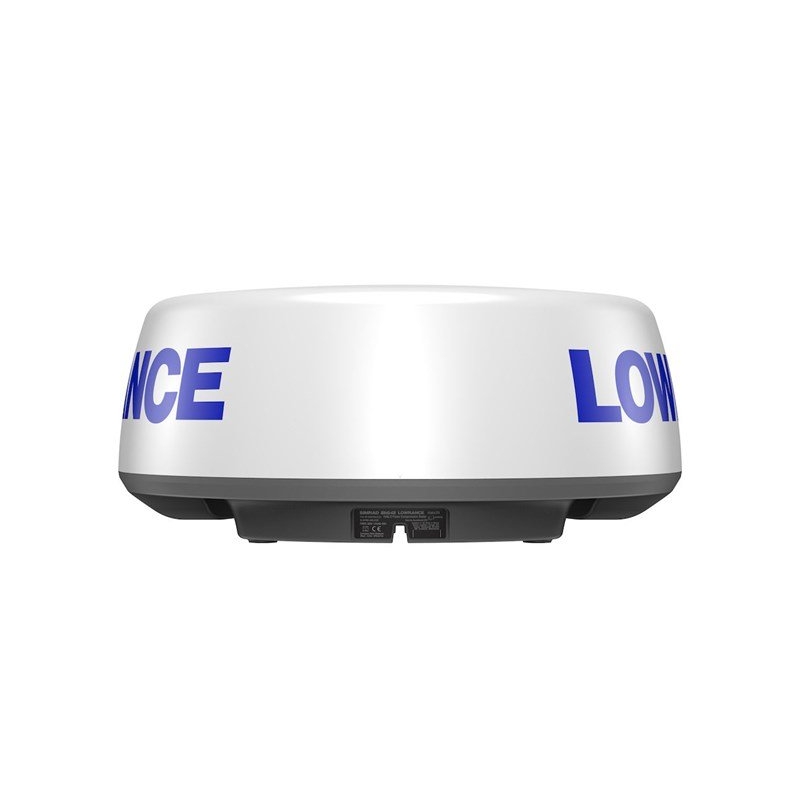

Excellent performance in short and medium distances.
Extends the view from the bow of the vessel up to 24 nautical miles with pulse compression radar technology, which not only provides a powerful mix of short- and long-distance detection, but also offers accurate target definition with minimal jamming.
Increased awareness of surroundings, collision risk prevention
The HALO20 radar offers a full range of functions to improve awareness of surroundings and safety at sea. It monitors selected collision hazards with MARPA target detection, detects up to 10 targets or 20 in dual range. Whether navigating in busy waters or in low visibility conditions, the HALO20+ radar immediately scans the surrounding area to provide a sharp, up-to-date image.
Always ready for use
The HALO20 radar instantly activates from low-power standby mode, delivering high-speed radar coverage exactly when and where required. Even when the HALO20 radar is turned off, it starts up in a matter of seconds, unlike conventional pulse radars that take several minutes.
Easy to use
Harbour, Offshore, Weather and custom modes fine-tune the HALO20 radar's advanced signal processing to ensure a crisp view of targets, even in the harshest environmental conditions.
Key features
- 10 W pulse compression
- Range up to 24 Nm via a single compact 20" dome antenna
- Ideal in short-range distances
- Radiation protection
- Ease of operation in harbor, offshore and weather modes
- MARPA target tracking
- InstantOn™
- Low power consumption
- Guard zones
