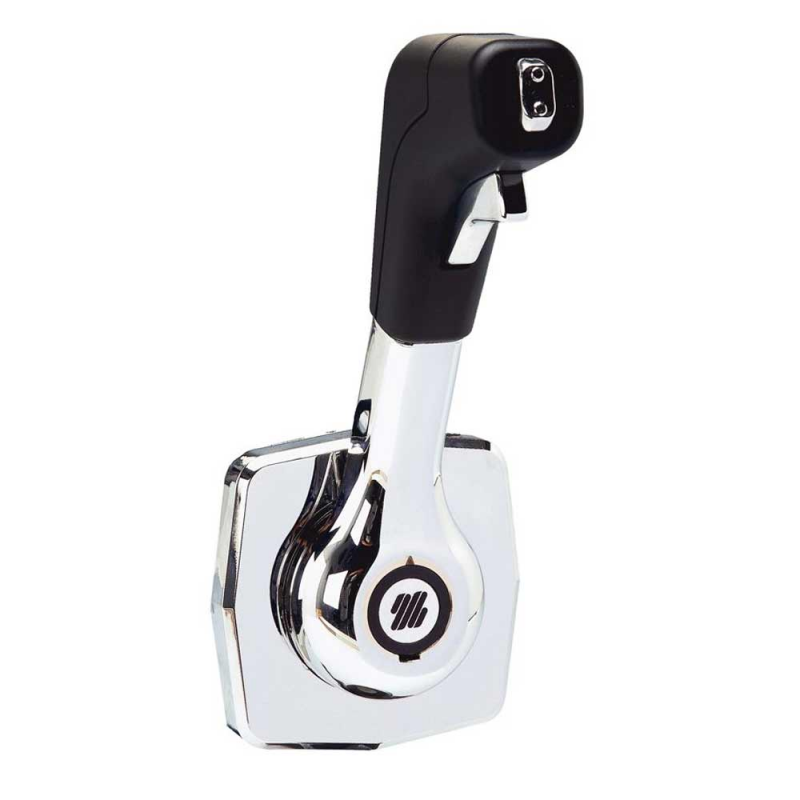

B310B control box Trim control - Ultraflex

Can be mounted on the left or right bulkhead, horizontally overtically. Equipped with a clutch to adjust the throttle, adjustable from the outside. Pulling out the lever disengages the inverter during engine warm-up operation. By means of the X12 safety switch (optional), engine starting is achieved only with the inverter in the neutral position. Conforms to EN ISO 11547in the presence of the X12 safety switch. Equipped with a lever locking device in the neutral position that preventsaccidental maneuvers. Complete with a 'trim switch in the handle that allows the adjustment of the lift-foot in outboard engines and coupling units. They use all cables except C2-C8-C14 and Mach0-Mach14.With C5, C16 and MACH5 iCables, the K35 adapter kit is required.
