Product Details
- Power supply
- 12 V
- Typology
- Hydraulic actuator
- Original Ref.
- M81122
- Series
- T3 reversible pump
- Actuator model
- Hydraulic pump: Type 3
- Volume cilindrico
- 350 - 500 cc
Description

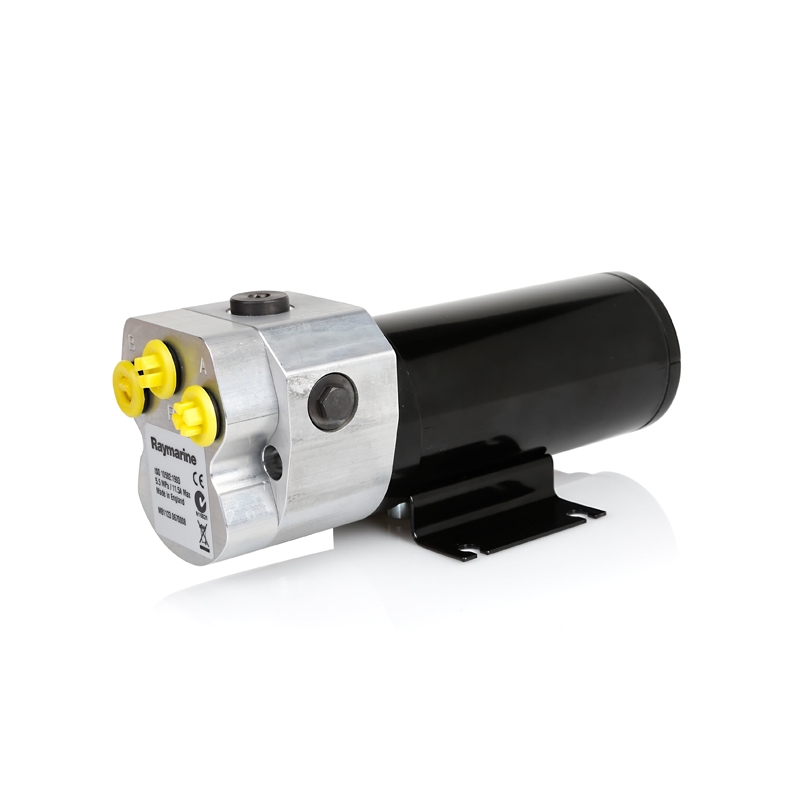

Raymarine Evolution steering systems connect to the steering system via a robust hydraulic pump appropriate for the steering system's capacity. If the steering system is hydraulic… You'll need to know the volume (in cubic inches) of the cylinder(s) mounted on the rudder stock on boats with inboard engines or on outboard engines. You'll find this information in your steering system manual.
- Vessel displacement: Not applicable for hydraulic steering systems because the actuator depends on the volume of the steering cylinder
- Regulated peak pressure at 12V: 80bar (1160psi)
- Maximum flow rate (idle): 2900cc/min
- Compatible with pilot control unit: ACU-400
Note:
- For steering systems with two cylinders in parallel, consider the sum of the volumes of the two cylinders. For steering systems with cylinders in series, consider only the volume of a single cylinder.
