Product Details
- Material
- Stainless steel
- Supply voltage
- 24 V
- Maximum pressure
- 47 mm H2O
- Rotation speed
- 2,500 RPM
- Power
- 300 W
- Maximum flow rate
- 12 m³/min
- Rotation
- Starboard (RH)
- Maximum current
- 16 A
- Noise level
- 56 dB(A)

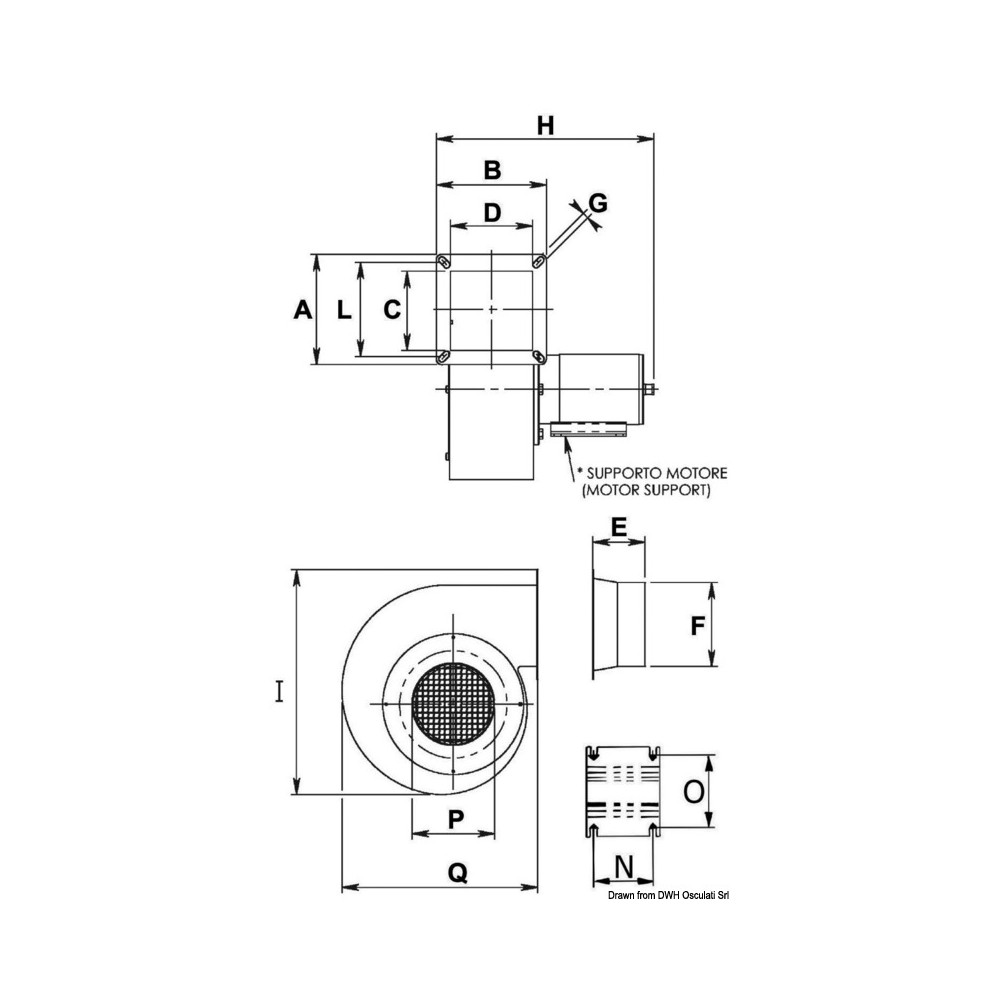

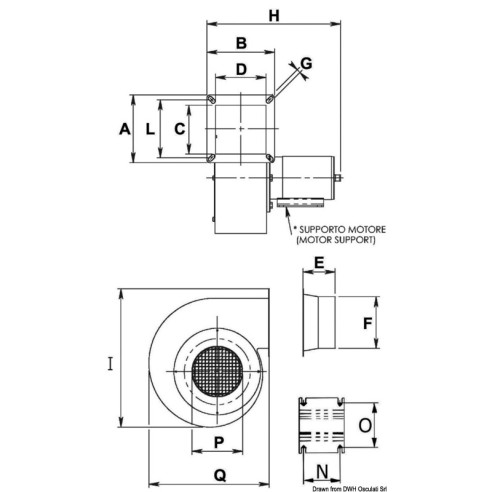

- Dimension A
- 130 mm
- Dimension B
- 155 mm
- Size C
- 90 mm
- Dimension D
- 115 mm
- Size E
- 75 mm
- Size F
- 98 mm
- Size G
- 8 mm
- Height H
- 340 mm
- Size I
- 270 mm
- Size L
- 110 mm
- Size P
- 98 mm
- Q size
- 225 mm
- Size N
- 80 mm
- Size O
- 102 mm
Description

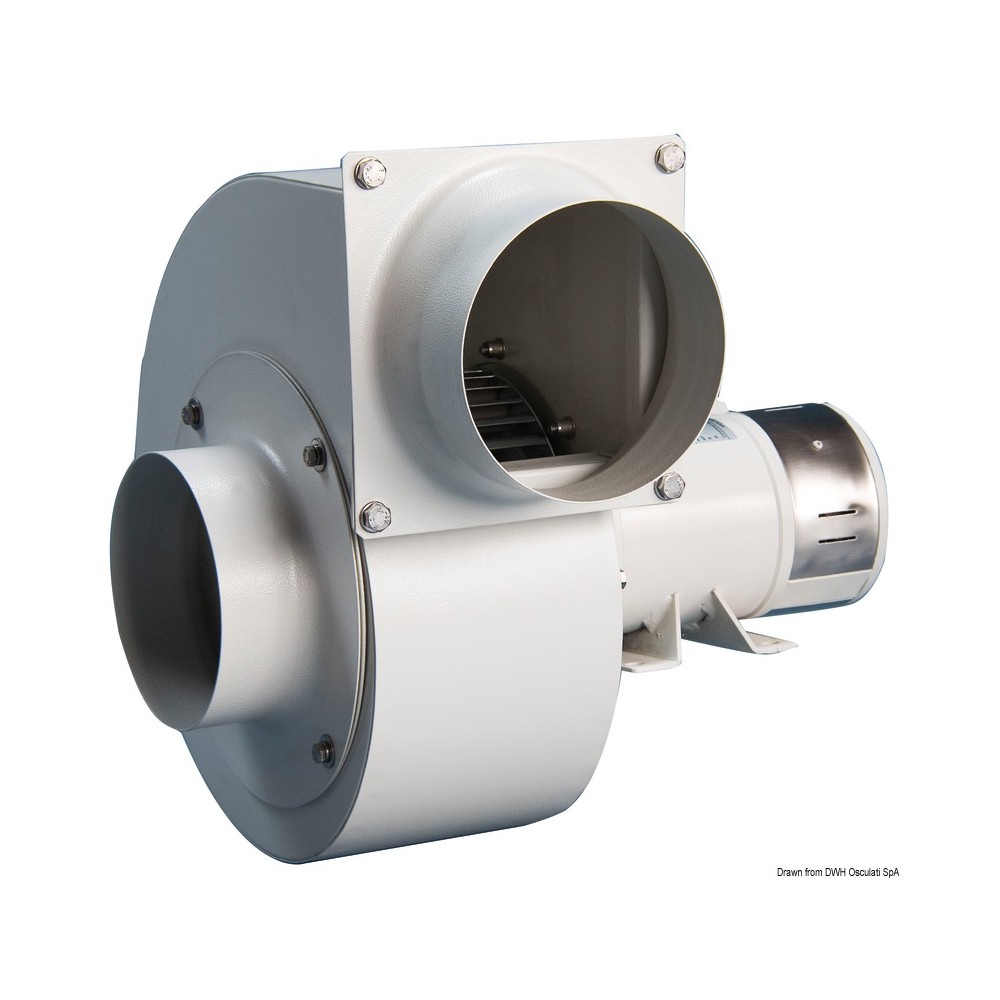

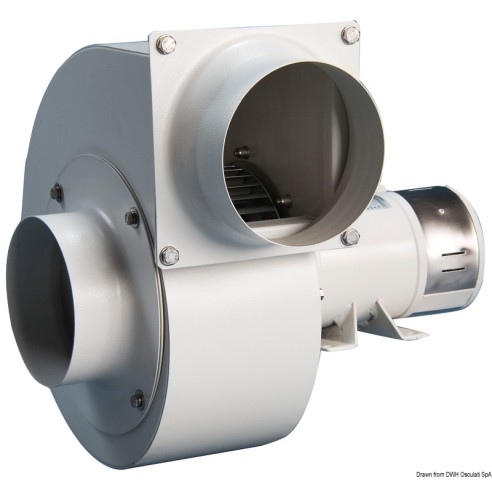

The CEM 24 V 300 W 16 A right-hand rotation (RD) centrifugal blower features a steel housing for forced ventilation of engine bays and enclosed onboard compartments. It operates at 24 V with 300 W power and draws up to 16 A.
The impeller is statically and dynamically balanced to limit vibration and ensure stable performance even in continuous duty. The steel body withstands the typical stresses of engine spaces: heat, humidity, and constant mechanical vibration. Right-hand rotation (RD) must be matched carefully to the existing duct routing. The package includes inlet and outlet hose flanges and an intake protective grille.
Main features
- 24 V – 300 W power supply with a maximum current draw of 16 A
- Steel housing for mechanical strength in engine rooms where environmental conditions are particularly demanding
- Statically and dynamically balanced impeller to minimize vibration during operation and extend service life
- Right-hand rotation (RD) to be verified against the onboard ventilation circuit layout
- Inlet and outlet hose flanges included for direct connection to intake and discharge ducts without additional adapters
- Intake protective grille included to prevent debris ingress and reduce the risk of mechanical damage
