Product Details
- Material
- Stainless steel
- Supply voltage
- 24 V
- Maximum pressure
- 84 mm H2O
- Rotation speed
- 2800 RPM
- Power
- 300 W
- Maximum flow rate
- 24 m³/min
- Rotation
- Port (LH)
- Maximum current
- 16 A
- Noise level
- 65 dB(A)

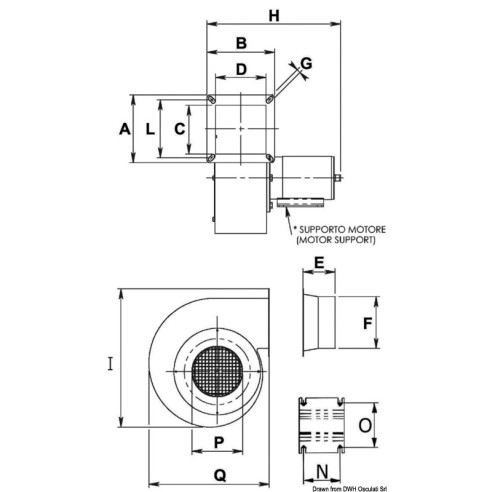

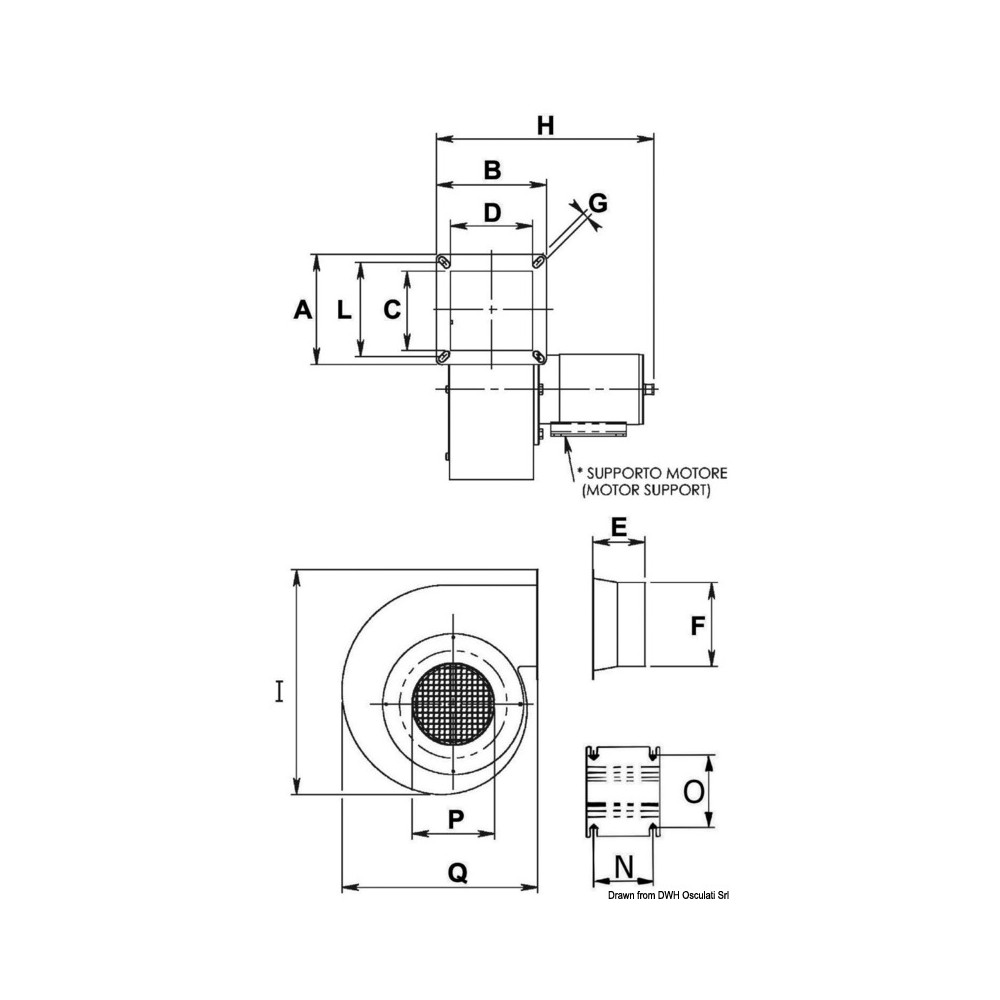

- Dimension A
- 160 mm
- Size B
- 160 mm
- Size C
- 110 mm
- Size D
- 110 mm
- Size E
- 78 mm
- Size F
- 118 mm
- Size G
- 8 mm
- H dimension
- 320 mm
- Size I
- 322 mm
- Size L
- 135 mm
- Size N
- 90 mm
- Size P
- 118 mm
- Q size
- 273 mm
- Size O
- 110 mm
Description

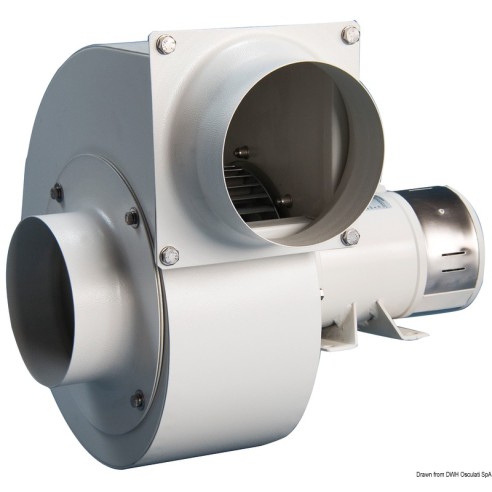

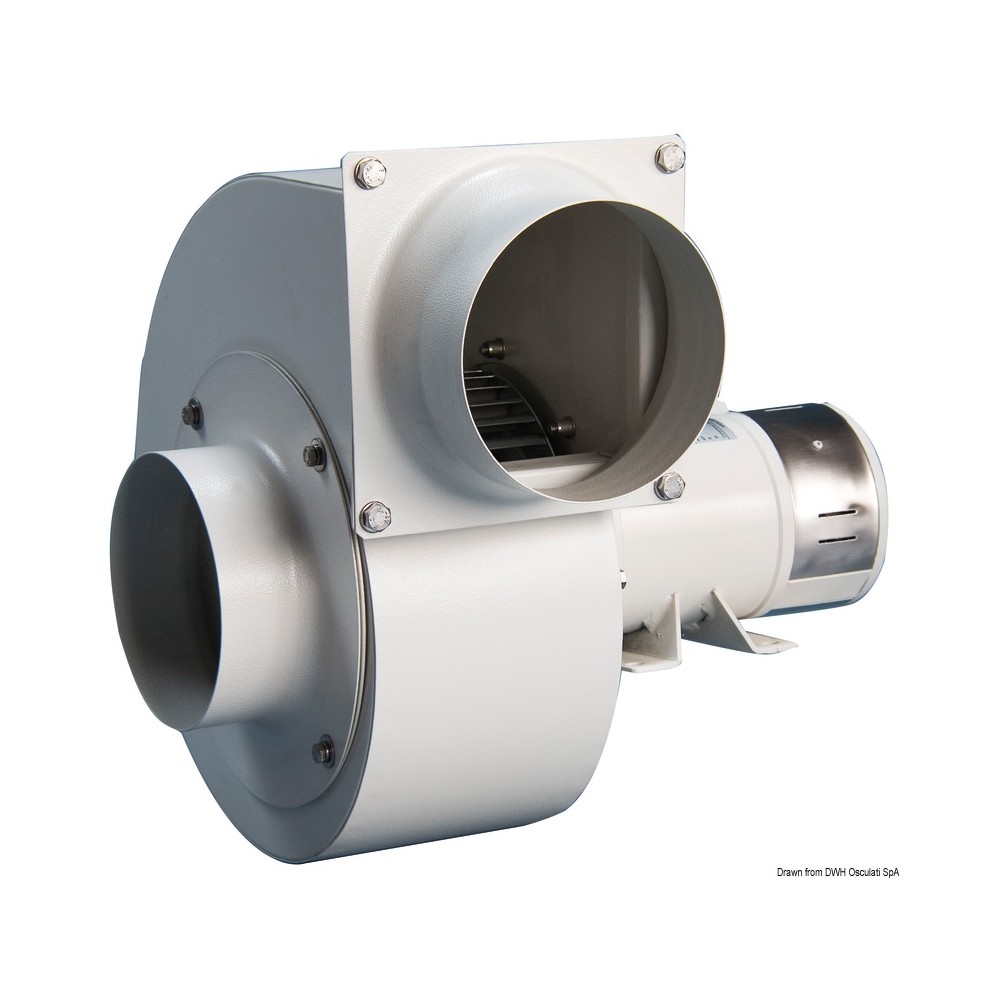

CEM centrifugal extractor/blower for engine compartments, 24 V configuration with left-hand rotation (LD). With 300 W power and a maximum current draw of 16 A, it is suitable for vessels with 24 V onboard electrical systems. At 2800 RPM it delivers a maximum airflow of 24 m³/min and a static pressure of 84 mm H2O.
The steel housing contains a statically and dynamically balanced impeller, ensuring low vibration during extended operation. Declared noise level is 65 dBA. Overall dimensions are 130 x 160 mm. The LD variant indicates left-hand rotation; verify compatibility with the target installation.
Supplied with intake safety guard and inlet/outlet hose flanges for immediate connection to onboard ventilation ducting.
Main features
- 24 V centrifugal type with 300 W power and 16 A max current, suitable for standard 24 V onboard systems
- Maximum airflow 24 m³/min at 84 mm H2O, for effective ventilation of medium to large engine rooms
- Statically and dynamically balanced impeller in steel housing to reduce vibration during continuous duty
- Noise level 65 dBA at 2800 RPM, as declared by the manufacturer for this configuration
- Left-hand rotation (LD).
