AISI 316 stainless steel lever hatch lift ⌀ 78 mm, keyless - Marine Town

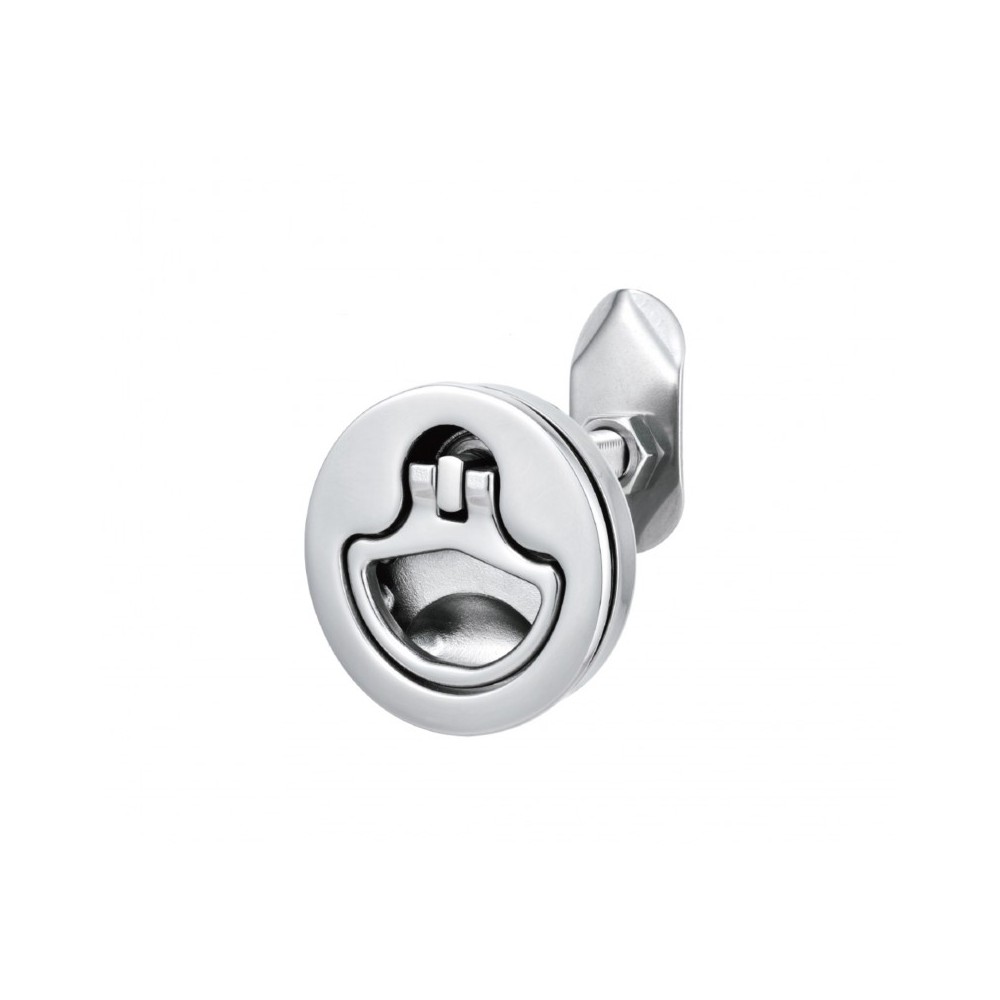

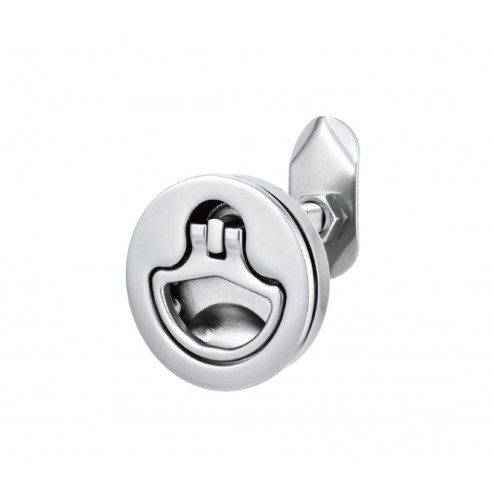

The Marine Town AISI 316 stainless steel lever hatch lift ⌀ 78 mm, keyless, is cast in AISI 316 stainless steel with a polished finish. Designed for boat sole hatches, it features a watertight, anti-vibration latching system operated by hand, with no key required.

The mechanism uses an internal spring-loaded lever with an eccentric cam: lowering the handle raises the lever and locks the hatch securely, reducing vibration and water ingress. Lifting the handle lowers the lever and releases the hatch. The system suits hatches with thickness over 5 mm and recess depth from 49 to 68 mm, covering most standard onboard installations.

Main features

• Cast AISI 316 stainless steel with polished finish, corrosion-resistant in the marine environment
• Internal spring-loaded lever with eccentric cam for watertight, anti-vibration, keyless locking
• Diameter ⌀ 78 mm with adjustable recess depth from 49 to 68 mm, suitable for hatches thicker than 5 mm

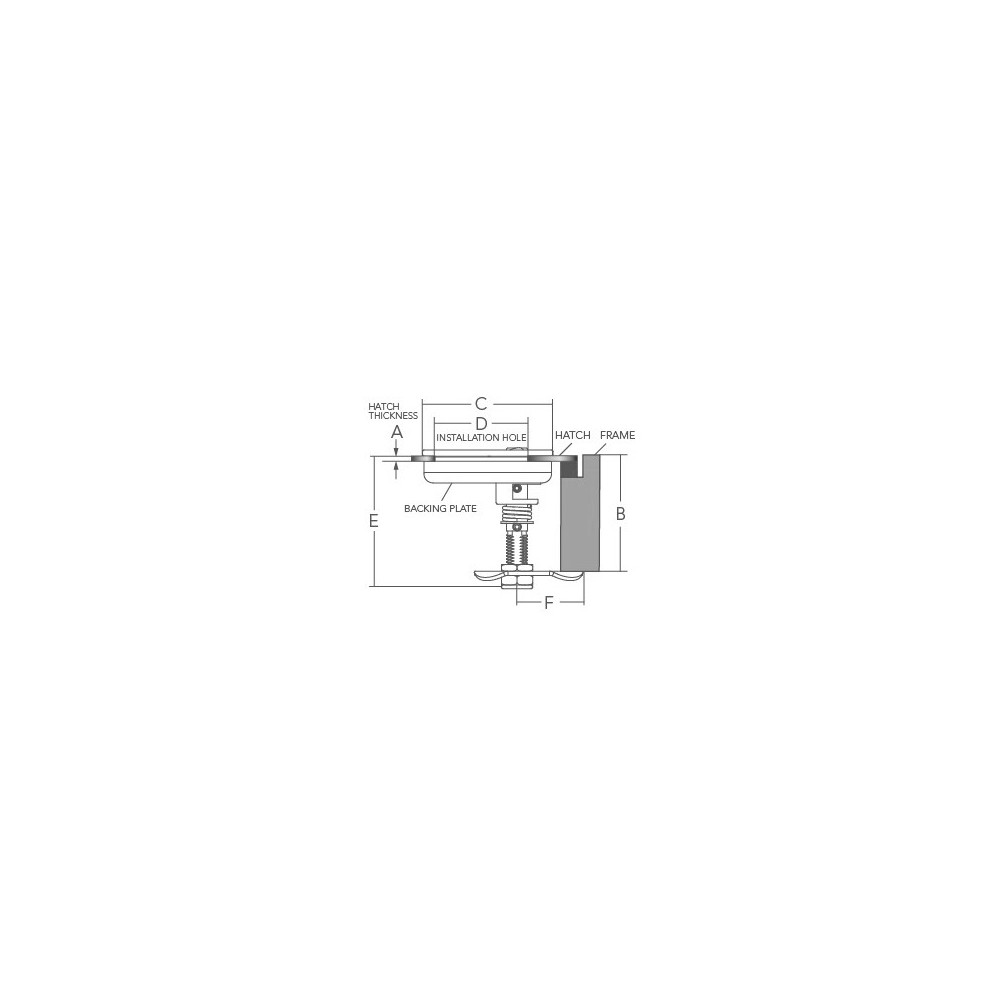

• Required cutout ⌀ 78 mm on hatch with minimum thickness 5 mm (dimension A)
• One-hand operation via folding handle: lowered to lock, raised to release the hatch
