Product Details
- Weight
- 1.16 kg.
- Degree of protection
- IP23
- Efficiency
- 90%
- Technology
- Alta frequenza con isolamento ingresso/uscita
- Dimensions
- 210×130×60 mm.
- Potenza continua
- 300 W
- Tensione nominale batteria
- 12 V
- Capacità batteria consigliata
- ≥60 Ah
- Tensione uscita
- 230 V 50 Hz
- Forma d'onda
- Sinusoide pura
- Corrente ingresso a carico nominale
- 22.5 A
- Tensione bassa spegnimento
- 10 V ±0.5 V
- Tensione bassa accensione
- 11 V ±0.5 V
- Tensione alta spegnimento
- 16 V ±0.5 V
- Tensione alta accensione
- 14.5 V ±0.5 V
- Range termico
- -20 °C / +40 °C
- Fusibile DC minimo
- 2×40 A
- Sezione cavo minima
- 1.5 m. fornito
- Connessione AC
- IEC universale
- Isolamento galvanico
- Sì
- Protezioni
- Sovra-temperatura, sovraccarico, cortocircuito, tensione batteria alta/bassa
- Certificazioni
- CE, E-mark, ABYC A-31
- Compatibilità MasterBus
- No
- Ventilatore
- Naturale/Forzato
Description

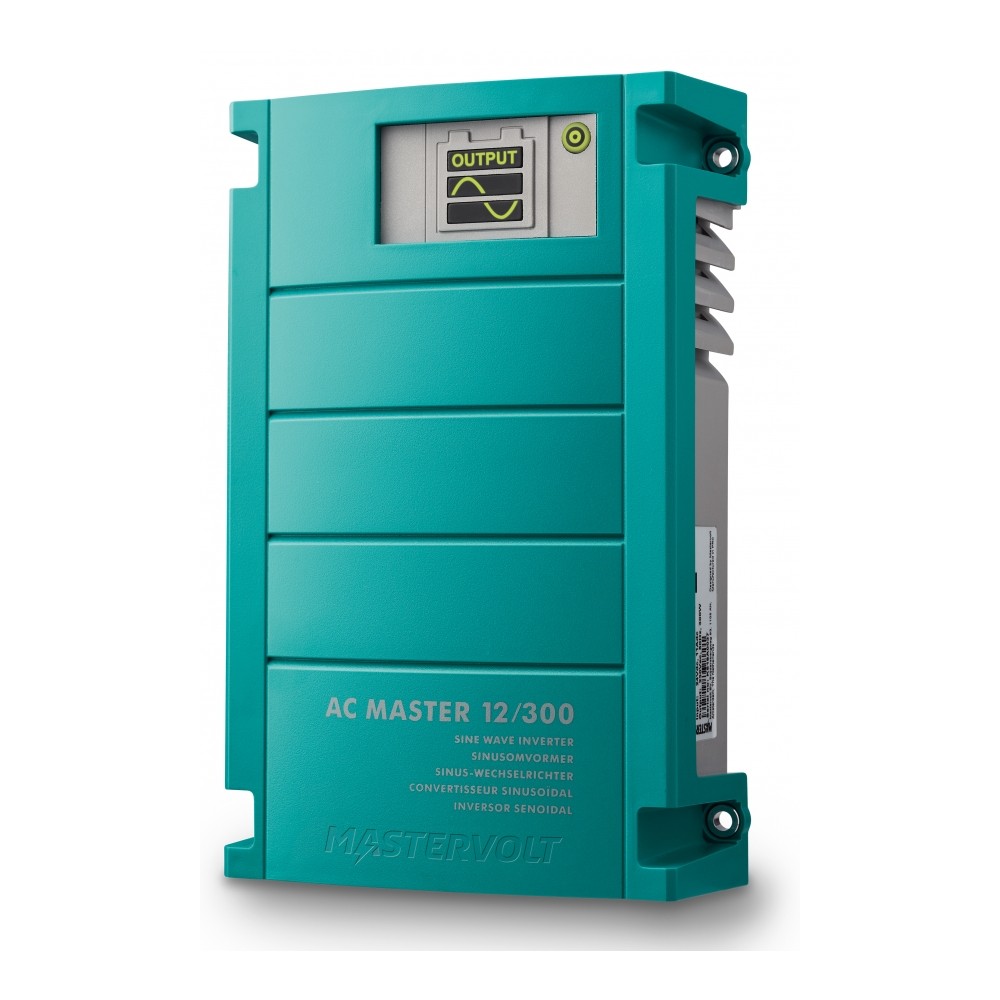

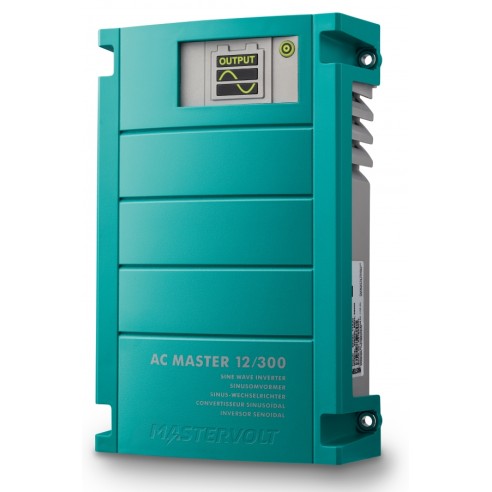

The Mastervolt AC Master 12/300 delivers 230 V 50 Hz AC on board from a 12 V battery bank, with a pure sine wave suitable for sensitive electronics, battery chargers and small appliances. Continuous power is 300 W at 25°C, derating to 250 W above 40°C—an important consideration for installs in engine rooms or warm lockers. A 600 W peak for 5 seconds handles inrush currents at start‑up.
High‑frequency galvanic isolation between input and output protects the onboard system from interference between the DC side and the AC side. 90% efficiency reduces conversion losses, while the energy‑saving mode keeps idle consumption to 4 W. Protections against over‑temperature, overload, short circuit and abnormal battery voltage—with defined shutdown and restart thresholds—ensure safe operation even under varying loads. Vertical wall mount with IP23 protection rating; minimum recommended battery capacity 60 Ah.
Main features
- Pure sine wave compatible with sensitive equipment such as marine electronics, chargers and motors, avoiding the distortion typical of modified‑sine inverters
- Galvanic isolation input/output via high‑frequency technology, electrically separating the battery from the AC circuit and reducing interference risk to the onboard system
- Continuous power 300 W at 25°C, 250 W above 40°C with thermal derating to be factored into sizing for hot‑environment installations
- Load peak 600 W for 5 seconds to manage start‑up surges of loads with high inrush current
- Energy‑saving mode with 4 W idle draw, useful to limit battery drain during prolonged lay‑ups
- Comprehensive protections against over‑temperature, overload, short circuit, and high/low battery voltage, with calibrated shutdown and restart thresholds
- ABYC A‑31 certification for marine inverters, plus CE and E‑mark, relevant for US‑built vessels or international charter fleets
- IP23 wall‑mount installation in vertical position, supplied with 1.5 m DC cable and IEC connector for quick commissioning
Scope of supply
- AC Master 12/300 inverter
- 1.5 m DC cable
- IEC plug
