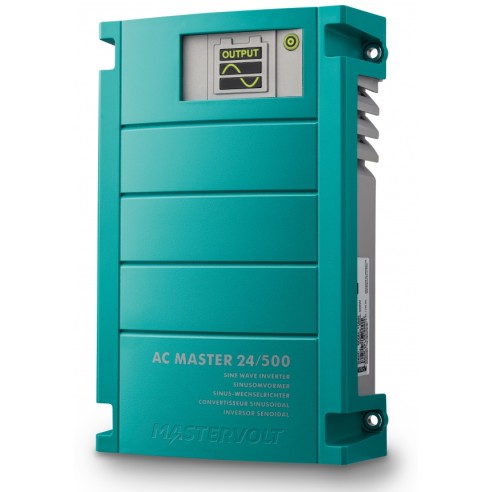

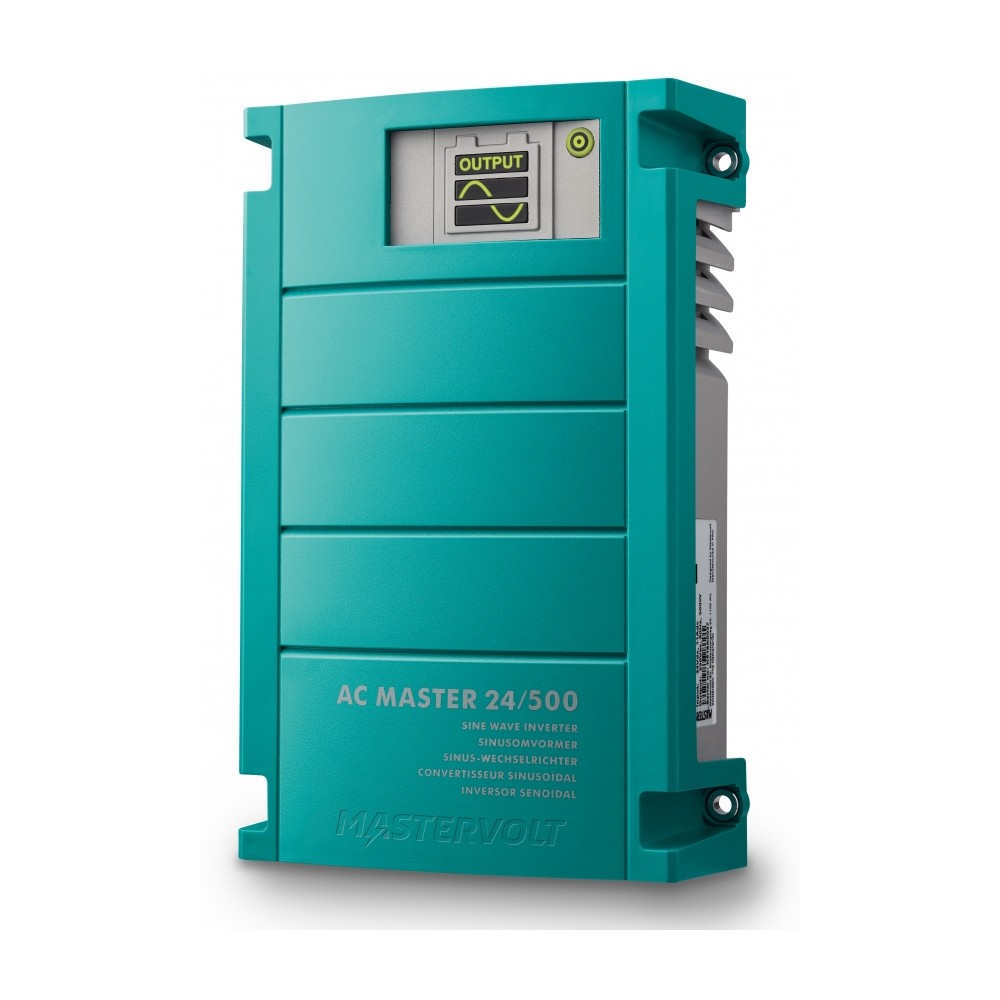

AC Master 24/500 pure sine wave inverter 500 W 24 V – Mastervolt

Mastervolt’s AC Master 24/500 is a pure sine wave inverter that converts 24 V battery power into stable 230 V AC 50 Hz, with 500 W continuous output. High‑frequency technology and full galvanic isolation ensure clean, safe power for sensitive onboard equipment. Compact and lightweight (1.22 kg), it is certified CE, E‑mark and ABYC A‑31 for recreational and semi‑professional use.

Purchased together

Rating:
(0)
$297.00
ACB1089
Quantity
Shop easy, no surprises.
Import duties are displayed at checkout
shop freely from the US!

3
In stock
Verifica disponibilità in negozio
HiNelson Wallet
Earn +$11.00 with this purchase
Credited after delivery · log in to start
×

HiNelson Wallet

With every purchase on HiNelson you earn credit in your wallet to use on your future orders.

  • Earn - With each purchase you automatically receive credit proportional to the amount spent.
  • Save - Use your accumulated credit to get discounts on your next orders.
  • No expiration - Your credit remains available in your account.
Delivery between Wednesday 17 Jun and Thursday 18 Jun
Easy return within 14 days Learn how »

Alternative products



Product Details

Weight
1.22 kg.
Degree of protection
IP23
Efficiency
91%
Technology
High frequency, ingressi e uscite completamente isolati
Dimensions
210 x 130 x 60 mm.
Potenza continua
500 W a 25 °C / 400 W a 40 °C
Tensione nominale batteria
24 V
Capacità batteria consigliata
≥ 50 Ah
Tensione uscita
230 V 50 Hz (± 0.1%)
Forma d'onda
Onda sinusoidale pura
Corrente ingresso a carico nominale
19 A
Tensione bassa spegnimento
20 V ± 0.5 V
Tensione bassa accensione
22 V ± 0.5 V
Tensione alta spegnimento
32 V ± 0.5 V
Tensione alta accensione
29 V ± 0.5 V
Range termico
-20 °C a 40 °C (riduzione potenza oltre 40 °C, spegnimento a 50 °C)
Fusibile DC minimo
40 A slow blow
Connessione AC
Universale con presa IEC inclusa
Isolamento galvanico
Sì
Protezioni
Sovra-temperatura, sovraccarico, cortocircuito, tensione batteria alta/bassa
Certificazioni
CE, E-mark, ABYC A-31, EU DoC

Description

General features

The AC Master 24/500 is a Mastervolt pure sine wave inverter designed to convert 24 V battery power to 230 V 50 Hz mains, with frequency stability of ±0.1%. It delivers 500 W continuously at 25 °C (400 W at 40 °C) and a peak power of 800 W for 5 seconds, sufficient to handle start-up loads. Its low weight of 1.22 kg and compact size (210 x 130 x 60 mm) make bulkhead mounting easy in confined spaces.

Waveform technology and quality

The pure sine wave output, generated with high‑frequency technology, makes this inverter compatible with any sensitive equipment: appliances, power tools, cooking devices and lighting. Inputs and outputs are fully galvanically isolated, eliminating interference risks and protecting both batteries and connected loads. 91% efficiency reduces onboard consumption, while the energy‑saving mode lowers idle draw to just 4 W.

Protection and reliability

The AC Master 24/500 integrates a full suite of automatic protections:

  • over‑temperature (shutdown at 50 °C)
  • overload and short circuit
  • high battery voltage (shutdown at 32 V) and low battery voltage (shutdown at 20 V)
IP23 ingress protection ensures resistance to water spray in marine environments. The LED display with 4 alarm modes enables immediate monitoring of operating status. A 1.5 m DC cable is supplied as standard; the recommended DC fuse is 40 A slow‑blow.

Installation and certifications

AC connection is via a universal IEC socket included in the package. The inverter is approved to CE, E‑mark, ABYC A‑31 and EU DoC, in line with international standards for marine use. Suitable for a wide range of recreational and semi‑professional applications on boats, motorhomes and vehicles.
