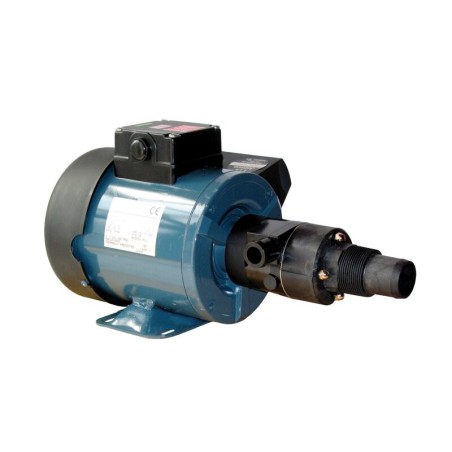

Jabsco 22130-2721 - Macerator pump 46 L/m. 110/220V
Jabsco 22130-2721 - Macerator pump 46 L/m. 110/220V

Jabsco 22130-2721 - Macerator pump 46 L/m. 110/220V

Durable stainless steel bolted version. Yields up to 46 l/m at 1.5m and 36 l/m at 6m height. With oil-resistant nitrile impeller and stainless steel wear plate. Self-priming up to 1.2m. Stainless steel grinder for grinding solids up to a maximum of 3mm (1/8") particle size. Inlet 38mm (1-1/2") barbed and 1 1/2" NPT (barbed nipple), outlet 25mm (1") barbed. Dimensions: Height 21.6cm / Width approx. 21.0cm / Length 30.9cm

Go to the spare parts list »

Purchased together

Rating:
(0)
$2,360.36 -17.54%
$1,946.42
AF1508
Quantity
Shop easy, no surprises.
Import duties are displayed at checkout
shop freely from the US!

0
This product is no longer in stock
Verifica disponibilità in negozio

HiNelson Wallet
Earn +$77.00 with this purchase
Credited after delivery · log in to start
×

HiNelson Wallet

With every purchase on HiNelson you earn credit in your wallet to use on your future orders.

  • Earn - With each purchase you automatically receive credit proportional to the amount spent.
  • Save - Use your accumulated credit to get discounts on your next orders.
  • No expiration - Your credit remains available in your account.
Easy return within 14 days Learn how »

Correlated accessories

Jabsco 18597-1000 - Macerator Plate
Pump spare parts
Jabsco

Jabsco 18597-1000 - Macerator Plate

AF1260
$27.30
Macerator wear plate
View
Jabsco 1040-0000 - Sealing Ring
  • -1.52%
Marine toilet spare parts
Jabsco

Jabsco 1040-0000 - Sealing Ring

AF1386
$31.50 $31.99
Sealing ring.
Jabsco 18593-1000 - Macerator Pump Body
  • -16.86%
Last items in stock
Marine toilet spare parts
Jabsco

Jabsco 18593-1000 - Macerator Pump Body

AF1387
$109.23 $131.39
Replacement macerator pump body
Jabsco 6342-0000 - Retaining Ring Set (3 pcs)
  • -1.46%
Marine toilet spare parts
Jabsco

Jabsco 6342-0000 - Retaining Ring Set (3 pcs)

AF1454
$29.40 $29.84
Compatible with Jabsco toilets series 37010, 37055, 37255, 37045, 37245, 37075, 37275 and pump 18590

Alternative products



Product Details

Original Ref.
22130-2721

Description

Jabsco 22130 Series Pump Exploded View

Each number in the image corresponds to a spare part. You can find the original part number in the table below. The codes highlighted in orange are clickable and allow you to purchase the part directly. For any questions or support, contact [email protected]

Ref. Description Original code
1 Hat nut 91085-0340
2 Fiber washer 91613-0140
3 Bolt 17288-0010
4 Macerator body 18594-1000
5 Needle cutter plate with locking nut 37056-2000
6 Macerator plate 18597-1000
7 Gaskets (2 pieces per kit) 18596-0000
8 Impeller 7273-0003
9 Wear plate, small 12316-1002
10 Pump body 18593-1000
11 Sealing ring 1040-0000
12 Set of sealing rings 6342-0000
13 Bolt 17288-0000
14 Motor 22138
