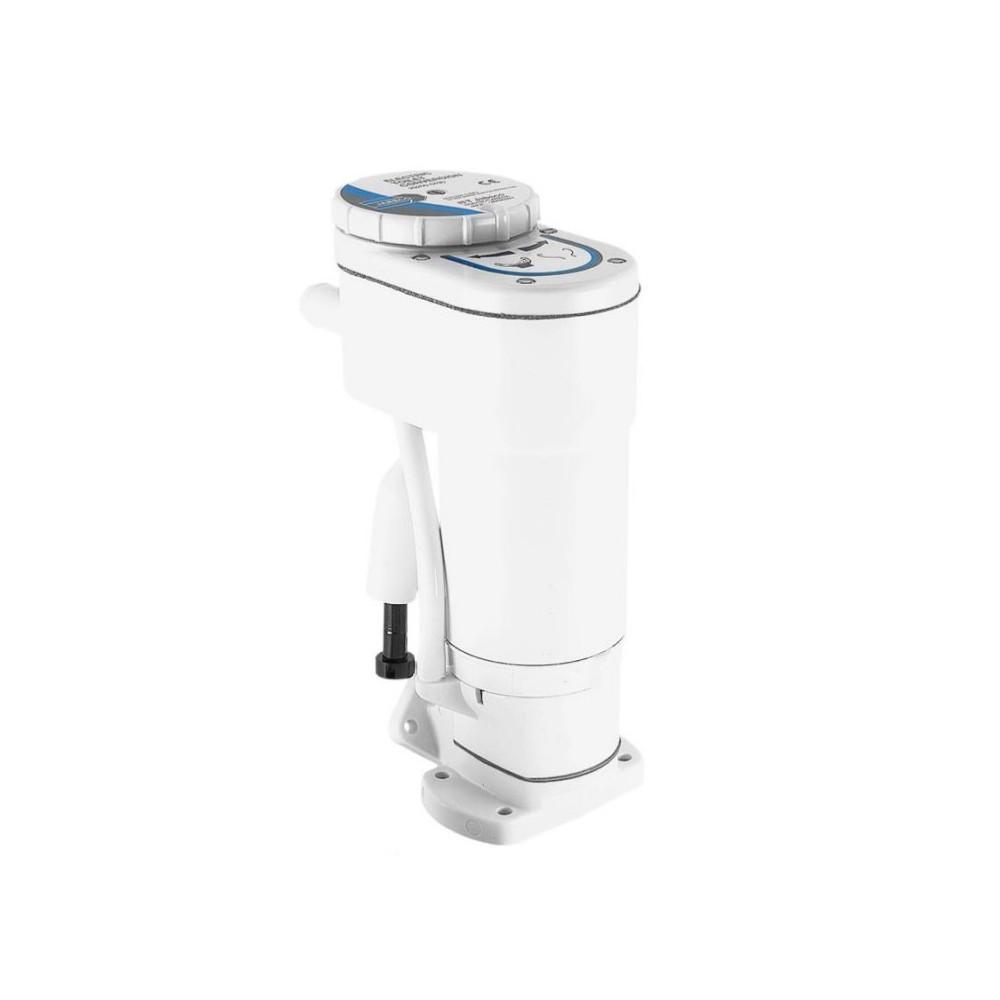

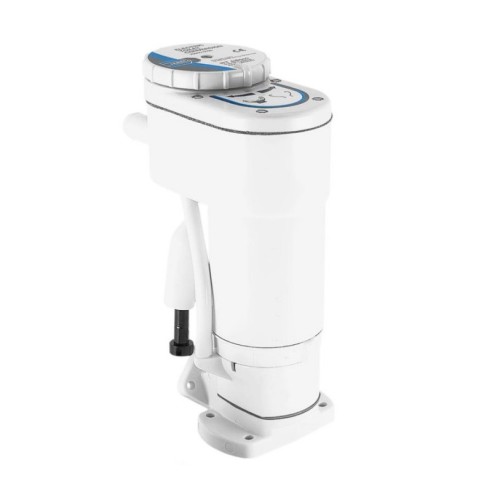

Jabsco 29200-0240 - 24V Electric Toilet Conversion Kit

Replaces the hand pump on a Jabsco compact or comfort toilet. Rotary switch operation: flush and flush simultaneously / flush only. Built-in macerator. Connections: Inlet 19mm (3/4"), outlet 38mm (1-1/2"). Current draw 13A, fuse 15A. Dimensions: Height 270mm / Width 87mm / Depth 150mm.

Go to the spare parts list »

Purchased together

$717.13 -3.79%
$689.94
AF1418
Quantity
No duties, no surprises.
We cover all import fees for you
shop freely from the US!

3
Available in stock
Verifica disponibilità in negozio
Easy and FREE RETURNS. Find out how »
Estimated delivery 11/17/2025

Correlated accessories

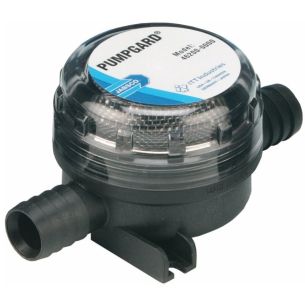

Bilge pump filter - Jabsco
Shower enclosure for boats
Jabsco

Bilge pump filter - Jabsco

$47.46
Stainless steel mesh to prevent pump clogging caused by debris in the bilge. Plastic casing with transparent cover for easy inspection and cleaning of the filter net.
Gaskets for vertical kit for toilet conversion - Jabsco Gaskets for vertical kit for toilet conversion - Jabsco 2
  • -9.58%
Marine toilet spare parts
Jabsco

Gaskets for vertical kit for toilet conversion - Jabsco

FA1970
$182.42 $201.74
Gasket kit for vertical kit for converting toilet from manual to electric - Jabsco
Jabsco 29029-1000 - Exhaust Elbow
  • -9.58%
Last items in stock
Marine toilet spare parts
Jabsco

Jabsco 29029-1000 - Exhaust Elbow

AF1396
$25.32 $28.00
Compatible with Jabsco toilets 29090, 290120, 29100, 29200 and 58XX0 (part of 58109-1000)

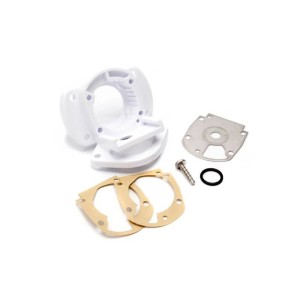

Jabsco 29071-1000 - Macerator Box
Marine toilet spare parts
Jabsco

Jabsco 29071-1000 - Macerator Box

AF1406
$81.09
Compatible with all Jabsco 29100 and 29200 series toilets/conversion kits
View

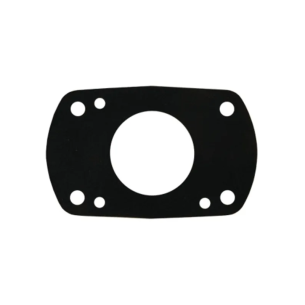

Jabsco 29072-1000 - Toilet Base Seal Kit
Marine toilet spare parts
Jabsco

Jabsco 29072-1000 - Toilet Base Seal Kit

AF1407
$14.62
Compatible with all Jabsco 29100 and 29200 series toilets/conversion kits
View
Jabsco 29075-1000 - Toilet Flush Pump Gasket
Marine toilet spare parts
Jabsco

Jabsco 29075-1000 - Toilet Flush Pump Gasket

AF1408
$15.91
Drain pump gasket (cork). Compatible with all Jabsco 29100 and 29200 series toilets/conversion kits.
View
Jabsco 29091-1000 - Exhaust Flange
  • -9.62%
Marine toilet spare parts
Jabsco

Jabsco 29091-1000 - Exhaust Flange

AF1409
$14.34 $15.87
Compatible with all Jabsco toilets / conversion kits 29090, 290120, 29100, 29200 and 58XX0
View
Jabsco 29092-1000 - Check Valve Jabsco 29092-1000 - Check Valve 2
  • -9.6%
Marine toilet spare parts
Jabsco

Jabsco 29092-1000 - Check Valve

AF1410
$20.98 $23.21
Compatible with all Jabsco toilets/conversion kits 29090, 290120, 29100, 29200 and 58XX0 series
View

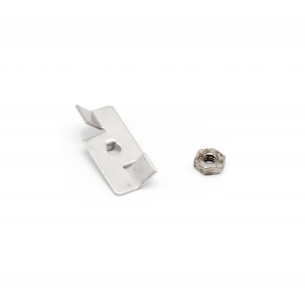

Jabsco 37056-1000 Toilet Grinder Blade Kit
Marine toilet spare parts
Jabsco

Jabsco 37056-1000 Toilet Grinder Blade Kit

AF1430
$23.95
Blade + locking nut. Compatible with Jabsco toilets series 29100, 29200, 37010, 37045, 37245, 37055, 37255, 37075, 37275
View

Alternative products



Product Details

Original Ref.
29200-0240

Description

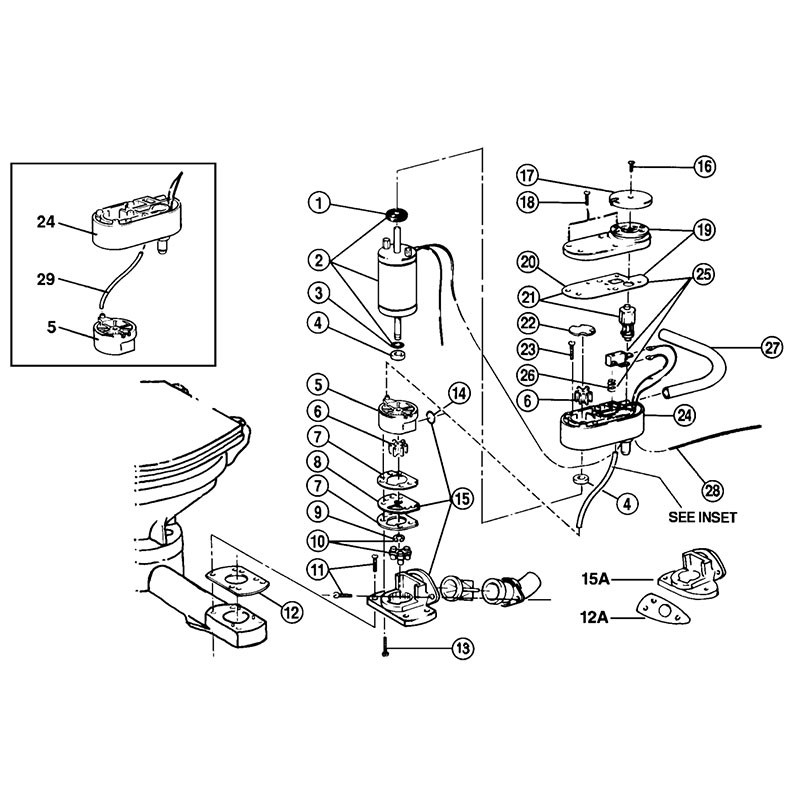

Jabsco 29200 Series Conversion Kit Exploded View

Each number in the image corresponds to a spare part. You can find the original part number in the table below. The codes highlighted in orange are clickable and allow you to purchase the part directly. For any questions or support, contact assistenza@hinelson.com

Ref. Description Original code
2 12V Engine Kit 29108-0120
2 24V Kit Engine 29108-0240
9 + 10 Toilet shredder 37056-1000
12 Base gasket 29072-1000
15 Macerator box 29071-1000
17 Switch 29077-1000
19 Pump cover 29081-1000
20 Gasket 29075-1000
21 Control valve 29083-1000
25 Switch 29103-1000
27 White toilet pipe 29035-1000
28 Fuse holder wiring 29106-1000
29 Non-return valve 29092-1000
31 19mm hose filter. 3/4" 20 mesh46200-0000
32 Exhaust flange 29091-1000
33 Exhaust elbow 29029-1000
Repair kit (contains spare parts: 3-4-6-7-11-14-16-17-18-20-23-25-30) 29101-0000
