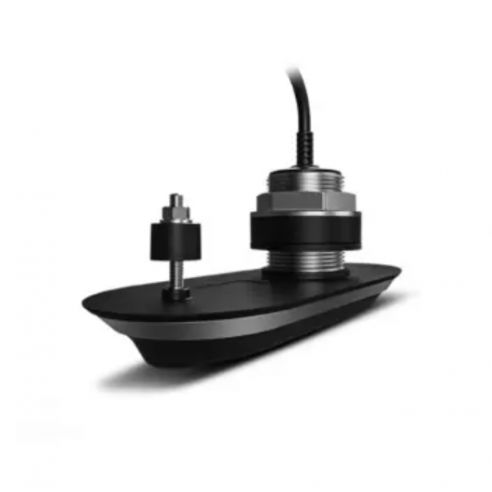

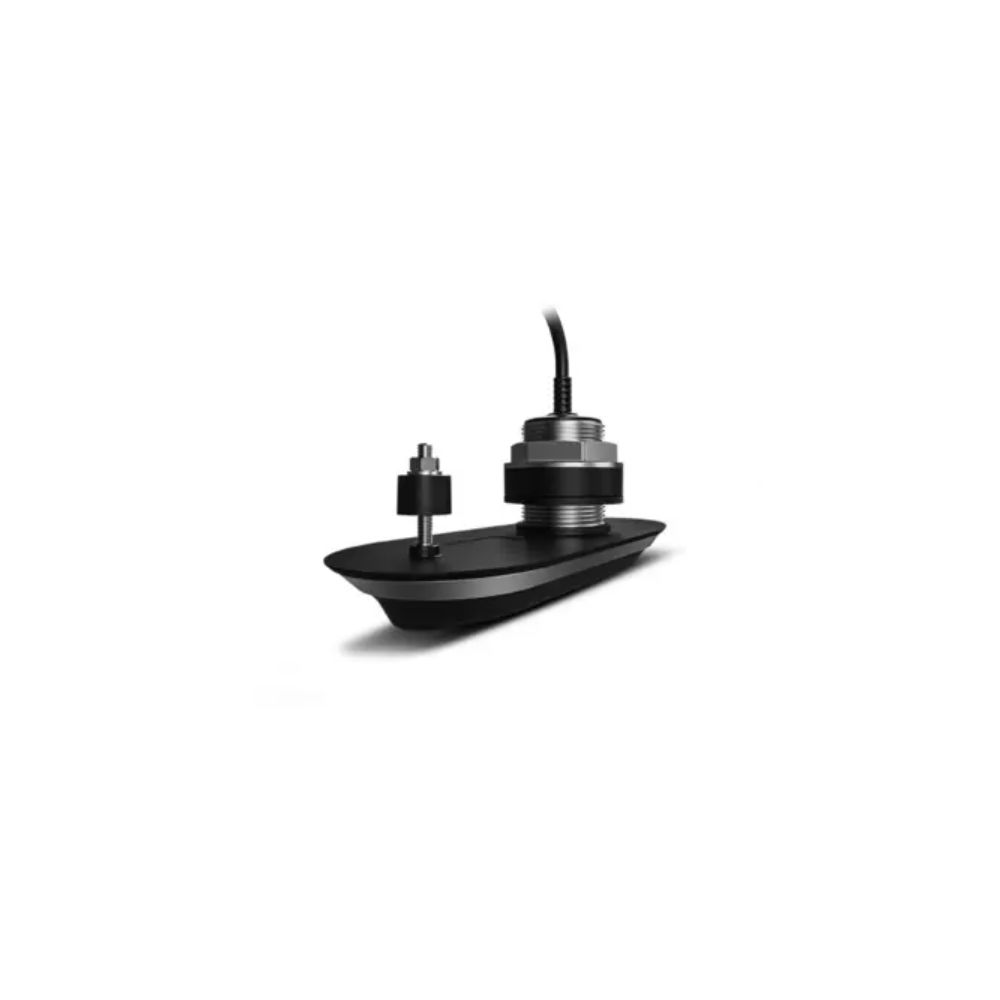

Raymarine RV-400 Stainless Steel Transducer 0° - 8m

RV-400 RealVision 3D Stainless Steel Through-Bottom Transducer - 0° Tilt Element - For AXIOM RV/AXIOM+ RV/AXIOM PRO RVX/RVX1000 (8m Cable - 25-Pin)

Product warranty up to 3 years. Find out more »

Purchased together

kr19,043.88

Reference: AC8820

Quantity

No duties, no surprises.
We cover all import fees for you
shop freely from the US!

Available in stock

Order before 09.00
Estimated delivery 11/19/2025

Alternative products

Material: Stainless Steel
Compatibility: Raymarine Axiom Plus RV Raymarine Axiom Pro RVX Raymarine Axiom RV Raymarine Axiom XL Raymarine RVX-1000
Sonar: CHIRP / Fishfinder DownVision RealVision 3D SideVision
Model: RV-400
Original Ref.: A80615
Maximum depth: 274 m. (Depth measurement depends on factors such as bottom type and other water conditions)
High-definition scanning: Yes
Scanning the sides of the boat: Yes
3D Scanning: Yes
Brand: Raymarine
Power: 600 W
Mounting type: Through installation
Hull angle: From 0° to 5°
For hulls: Fiberglass Metal Wood
Displayed data: Depth Temperature
Cable length: 8 m.
Connector PIN: 25 pin
Compatible without adapter: Raymarine Axiom Plus RV Raymarine Axiom Pro RVX Raymarine Axiom RV Raymarine RVX-1000
Compatible with adapter: Raymarine Axiom XL requires an RV transducer connected to a RVX1000 or a networked Axiom RV or Axiom Pro RVX for RealVision viewing.
Transducer Tilt (TILT): 0°
