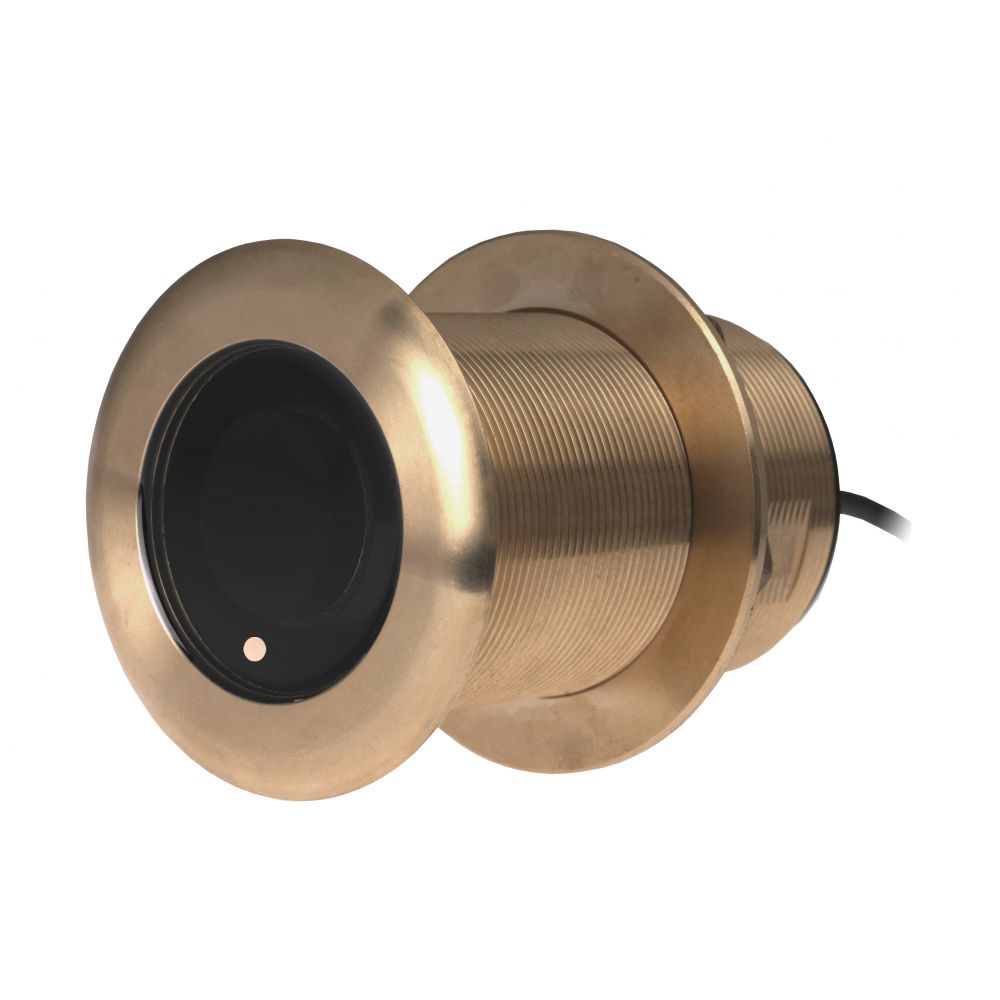

Raymarine B75H Depth/Temp Thru-Hull Transducer 600W Low Tilt Bronze 16-24"

B75H Depth/Temp Pass-Through Bronze 600W Low Profile Tilt 20° (H:130-210kHz) - Requires A80328 Adapter Cable

Product warranty up to 3 years. Find out more »

Purchased together

$1,215.54

Reference: AC8783

Quantity

No duties, no surprises.
We cover all import fees for you
shop freely from the US!

Available in stock

Estimated delivery 11/19/2025

Alternative products

Material: Bronze
Compatibility: Raymarine CP470 Raymarine CP570
Frequency: 130/210 kHz
Sonar: CHIRP / Fishfinder
Model: B75H
Original Ref.: A80037
Maximum depth: 214 m. (Depth measurement depends on factors such as bottom type and other water conditions)
High-definition scanning: No
Scanning the sides of the boat: No
3D Scanning: No
Brand: Raymarine
Power: 600 W
Mounting type: Through installation
Hull angle: From 16° to 24°.
For hulls: Fiberglass Wood
Displayed data: Depth Temperature
Cable length: 10 m.
Connector PIN: 11 pin
Compatible with adapter: 5 m.(A102150) o 10 m.(A80327). Raymarine CP470 Raymarine CP570 with single frequency cable (A80328). If installed in pairs, join with Y-cable (A012146) completare con prolunghe 3 m. (A102148)
Transducer Tilt (TILT): 20°
