Product Details
- Weight
- 3.8 kg.
- Material
- Stainless Steel
- Breaking load
- 27000 kg.
- Length
- 500 mm.
- Model
- Serie 30
- Original Ref.
- 806-0032
- Extension
- 140 mm.
- Workload
- 14000 kg.
- Spring diameter
- Ø 100 mm.
- Maximum boat length
- 25+
- Suitable boat weight
- 70-90 t
- Elastic capacity
- 2800 kg.
Description

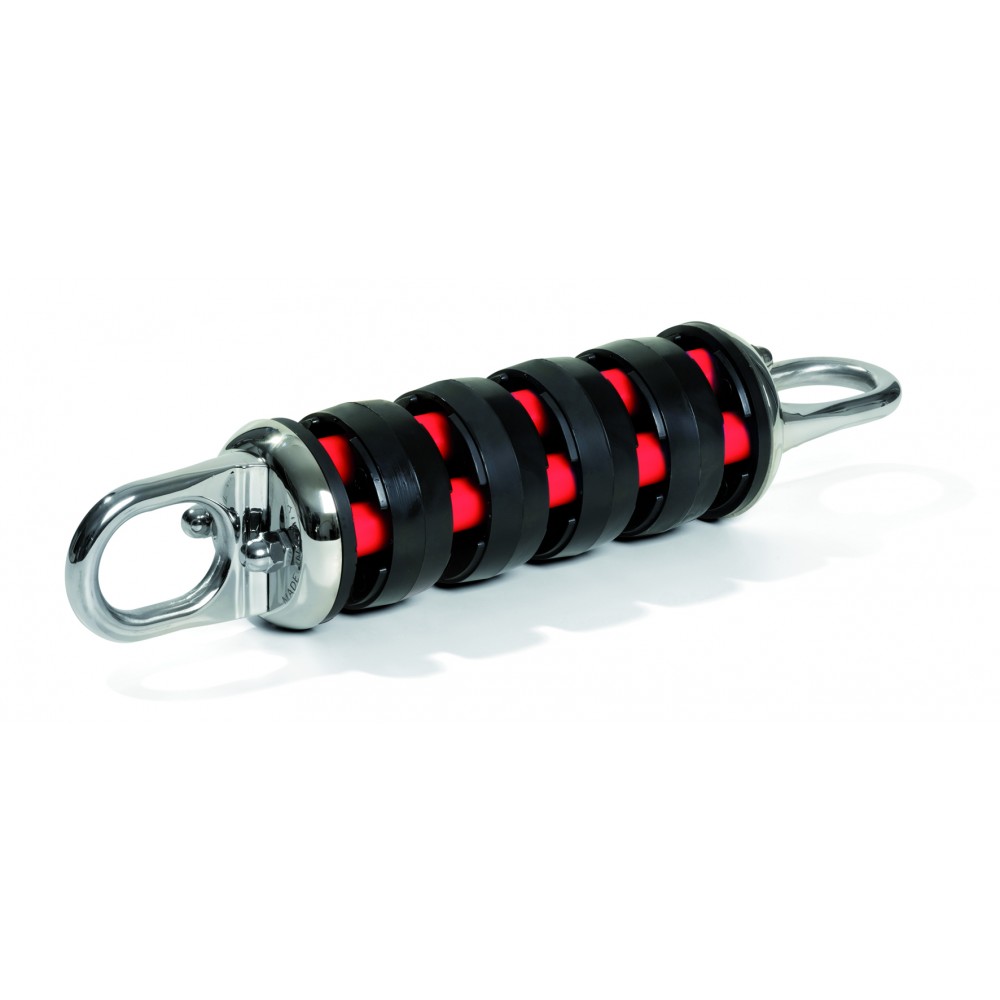

Mooring dampers with adelastometer operation. They are distinguished by high-tech components such as stainless HR (17/4PH) and special elastometers. The end-stop and idistancial components are made of special nylon with U.V. absorber. HR stainless steel strength 120-140 kg./mm2. End-of-stroke components and spacers made of special U.V. absorber nylon. Elastomers with outstanding properties from -40°C to +120°C and endurance of more than 400,000 cycles at end of stroke. Spring Ø mm. 100, length mm. 500, elongation mm. 140, for boats up to 70/90 tons, breaking load kg. 27000, working load kg. 14000, spring weight 3.8 kg.
