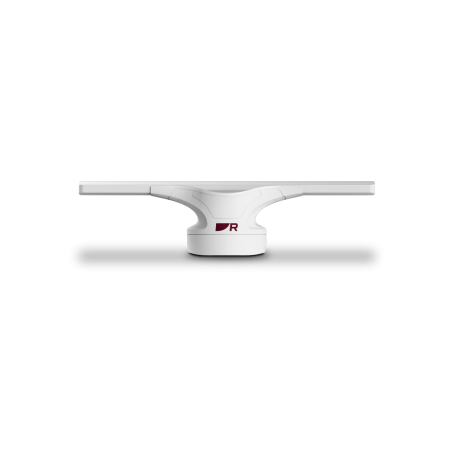

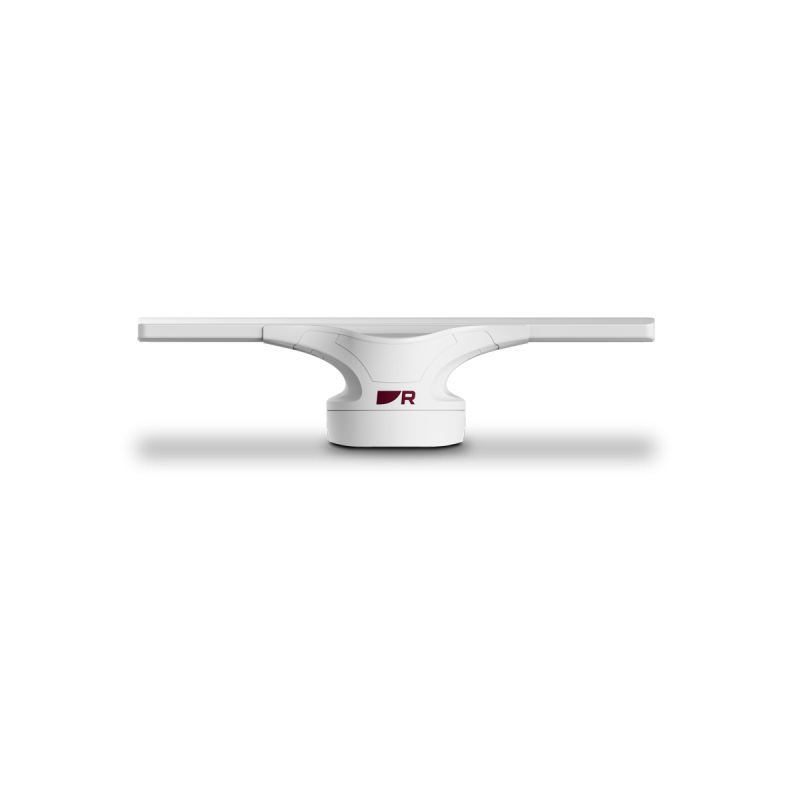

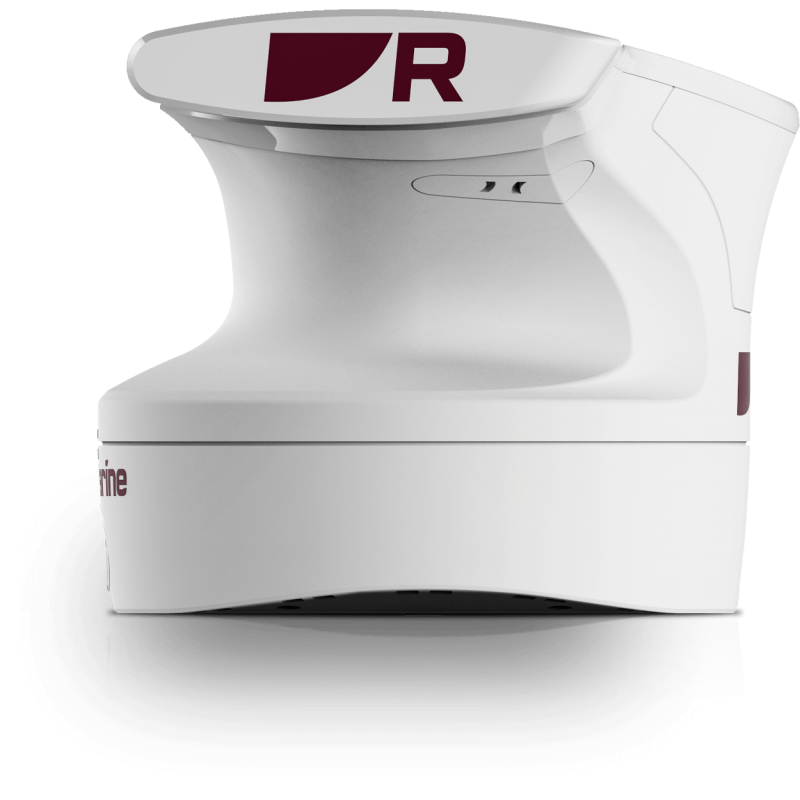

Cyclone Pro 110W 4ft open field antenna + 15m RayNet cables. - Raymarine
Cyclone Pro 110W 4ft open field antenna + 15m RayNet cables. - Raymarine
Cyclone Pro 110W 4ft open field antenna + 15m RayNet cables. - Raymarine

Cyclone Pro 110W 4ft open field antenna + 15m RayNet cables. - Raymarine

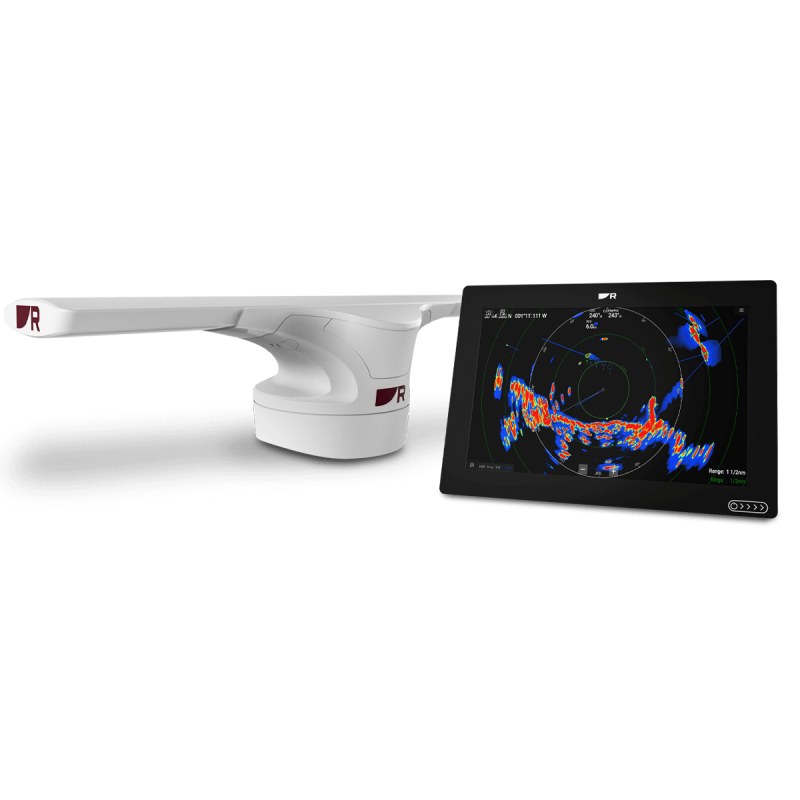

The ultimate expression of design and unparalleled high performance, Raymarine Cyclone solid-state radars give boaters the confidence to tackle the most challenging conditions, navigate heavily congested areas with complete peace of mind, and make it easier to find fish. 110 Watts (equivalent to a 12 kW Magnetron)

Product warranty up to 3 years. Find out more »

Purchased together

Rating:
(0)

Alternative products

Product Details

Weight
25 kg.
Power supply
12 V 24 V
Power output
110 W
Model
Cyclone Pro 110W 4ft Open Array
Original Ref.
T70495
Series
Cyclone
Wifi
No
Other links
Network cable
Radar technology
CHIRP pulse compression
Radar range
96 miles
Dimensions Ø/h
1336 x 335 mm.
Energy consumption
195 W
Double interval
Yes
Radar overlay on map
Yes
Flocks of birds detection
Yes
Target Track
Yes
Auto gain
Yes
MARPA
Yes ARPA
Maximum wind speed
100 knots

Description

The pinnacle of design and unmatched performance, Raymarine Cyclone solid-state radars give boaters the confidence to tackle the most challenging conditions, navigate heavily trafficked areas with complete peace of mind, and make bonanza hunting easier. Cyclone radars are available in a variety of 3-, 4-, and 6-foot antenna options and two power options (55W/110W). Each model features innovative sensing technologies, including RangeFusion™, 60 RPM rapid rotation, and Bird Mode. Cutting-edge Design: The aggressive, aircraft-wing-inspired design is unique and will appeal to everyone, especially those who are aesthetically conscious. With a low height of just 13.1 inches (335 mm), and a unique low-profile design, Cyclone allows for greater installation flexibility relative to the boat's design. Best in class! Guaranteed operation up to 100 knots of wind and designed to meet the IEC 62388 standard. Cyclone technology: High-precision radar image thanks to CHIRP pulse compression technology and the innovative radar beam sharpening technique: these two technologies allow for excellent target discrimination and greater long-range resolution. Target detection: The high rotation speed, 60 RPM, and 360-degree scanning offer accurate target tracking in real time. Maximum image definition: • Doppler tracking simplifies target interpretation, recognizing dangerous ones, highlighted in red, and safe ones highlighted in green, for greater navigation safety • Professional-level ARPA target tracking. Cyclone automatically tracks up to 50 targets. • This feature was developed at the express request of the United States Coast Guard. Find the Gulls and Find the Feed: High-performance gull location • Quickly locate gulls above feeding schools • Enhanced Bird Mode with CHIRP (High-Resolution Pulse Compression) technology. Cyclone Bird Mode: Cyclone intelligently and automatically optimizes gain and trim settings for identifying gulls from miles away. Cyclone intelligently and automatically optimizes gain and trim settings for identifying gulls from miles away while reducing noise.
