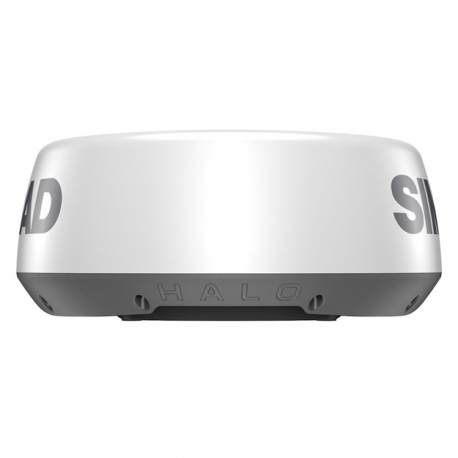

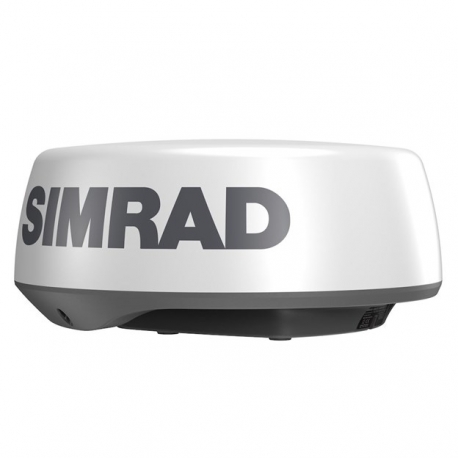

Halo 20 radar antenna - Simrad

With HALO 20, you gain greater situational awareness and avoid the risk of collisions. A compact dome radar with pulse compression technology that detects collision hazards and other targets at close range and up to 24 nautical miles.

Purchased together

Alternative products

Product Details

Weight
5.9 kg.
Power supply
12 V 24 V
Power output
10 W
Typology
Radome
Model
Halo20
Original Ref.
000-14537-001
Series
Halo
Wifi
No
Other links
Network cable
Radar technology
Pulse compression
Radar range
24 miles
Dimensions Ø/h
510 x 223 mm.
Energy consumption
20 W
Double interval
No
Radar overlay on map
Yes
Target Track
No
Auto gain
Yes
MARPA
Yes (requires a direction sensor sold separately)
Maximum wind speed
100 knots
Flock detection
Yes

Description

Excellent performance at short and medium distances.

Extend your view from the bow of your vessel up to 24 nautical miles with pulse compression radar technology, which not only provides a powerful mix of close- and long-range detection, but also delivers precise target definition with minimal clutter.

Increased awareness of the surrounding environment, prevention of the risk of collisions

HALO20+ radar offers a comprehensive suite of features to enhance situational awareness and safety at sea. Monitor selected collision hazards with MARPA target tracking, detecting up to 10 targets or 20 in dual range. Whether navigating through congested waters or in poor visibility, HALO20+ radar instantly scans the surrounding area to provide a clear, up-to-date picture.

Always ready for use

The HALO20 radar activates instantly from low-power standby mode, providing high-speed radar coverage exactly when and where needed. Even when powered off, the HALO20 radar starts up in seconds, unlike traditional pulse radars that take several minutes.

Easy to use

Harbour, Offshore, Weather and Custom modes fine-tune the HALO20 radar's advanced signal processing to ensure a clear view of targets, even in the most challenging environmental conditions.

Main functions

  • 10W pulse compression
  • Range up to 24 nm via a single compact 20" dome antenna
  • Ideal for short range distances
  • Radiation protection
  • Ease of use in harbour mode, offshore and weather
  • MARPA Target Tracking
  • InstantOn™
  • Reduced energy consumption
  • Guard zones
