Raccorderia, scarichi a mare e valvole in plastica 14879

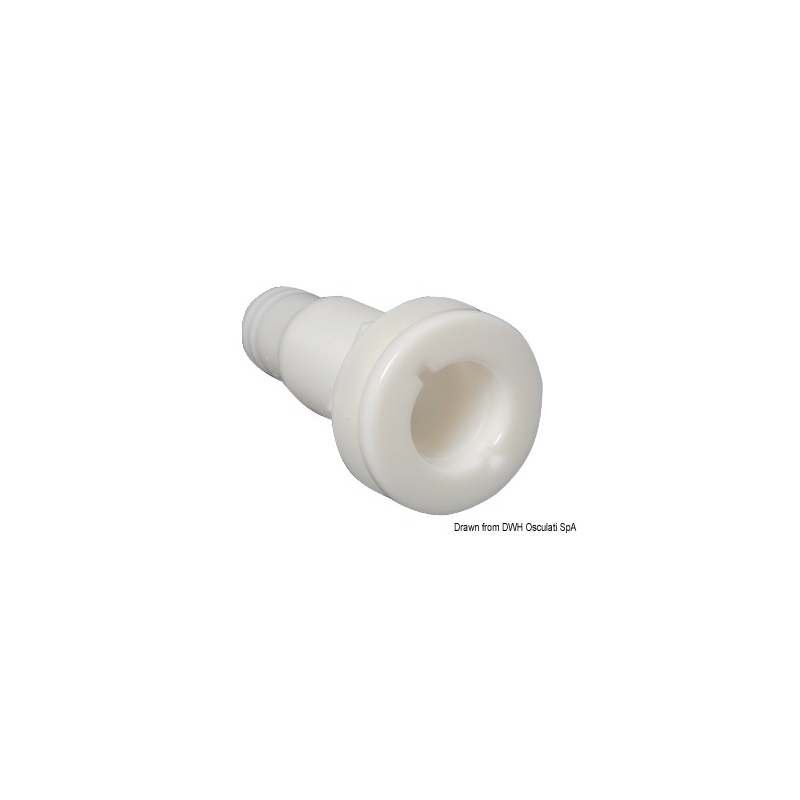

Model: Nylon drain 1" 3/8 mm 19/20

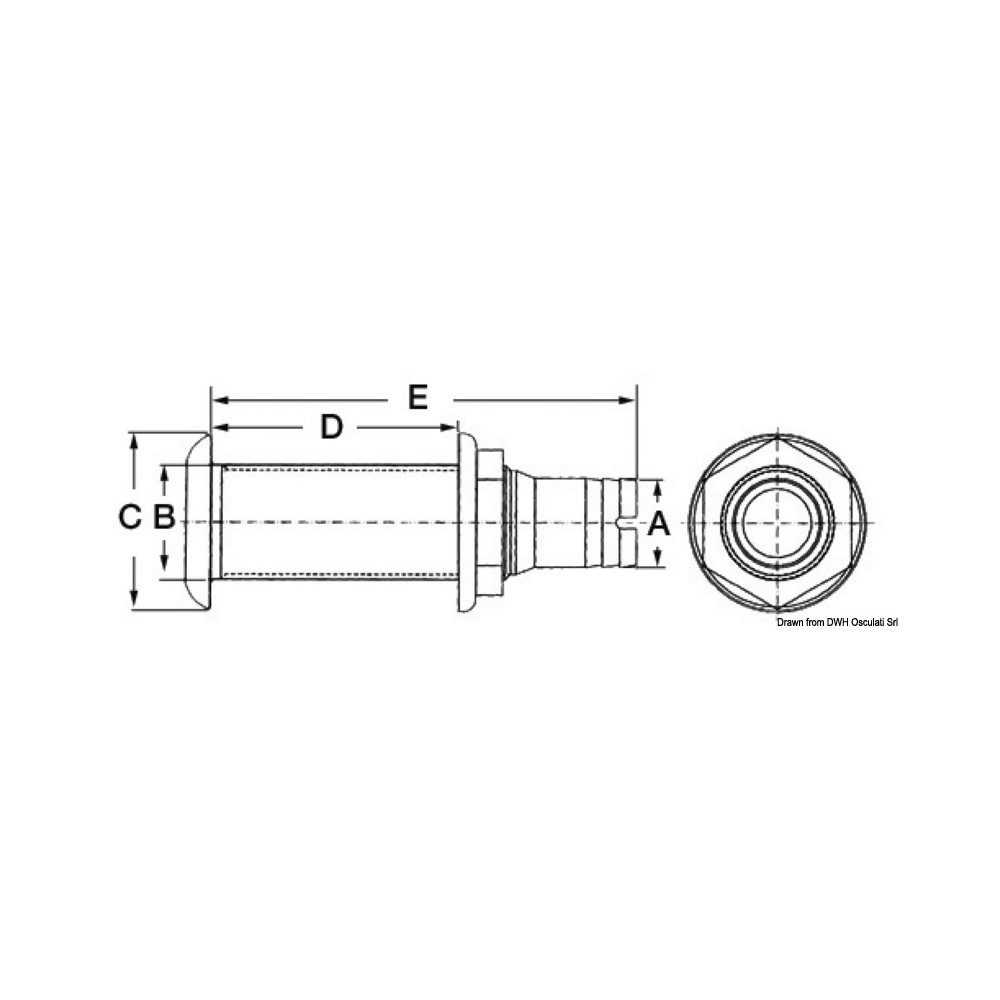

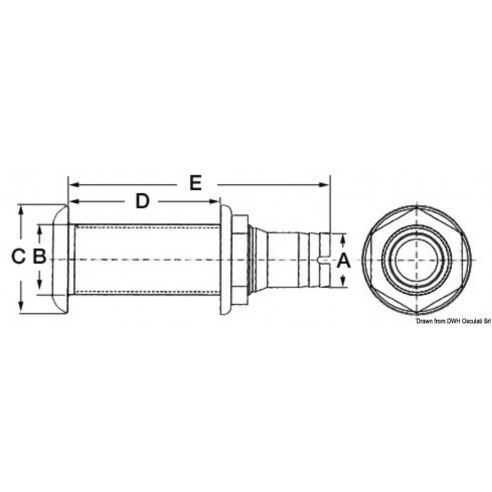

Ø A (mm.): 19/20
Thread B (mm.): 1" 3/8
Ø B (mm.): 35
C (mm.): 54
D (mm.): 86
E (mm.): 144
Check valves: No

Model: Nylon outlet 1" 3/8 mm 29/32
Ø A (mm.): 29/32
Thread B (mm.): 1" 3/8
Ø B (mm.): 35
C (mm.): 54
D (mm.): 86
E (mm.): 152
Check valves: No

Model: Nylon outlet 2" 1/4 mm 38
Ø A (mm.): 38
Thread B (mm.): 2" 1/4
Ø B (mm.): 57
C (mm.): 73
D (mm.): 95
E (mm.): 165
Check valves: No

Model: Nylon drain 2" 1/4 mm 38 with check valve
Ø A (mm.): 38
Thread B (mm.): 2" 1/4
Ø B (mm.): 57
C (mm.): 73
D (mm.): 95
E (mm.): 166
Check valves: Yes

Model: Nylon drain 2" 1/4 mm 52 with check valve
Ø A (mm.): 52
Thread B (mm.): 2" 1/4
Ø B (mm.): 57
C (mm.): 73
D (mm.): 45
E (mm.): 122
Check valves: Yes

Model: Stainless cap drain 1" 3/8 x 19/20 mm
Ø A (mm.): 19/20
Thread B (mm.): 1" 3/8
Ø B (mm.): 34
C (mm.): 58
D (mm.): 86
E (mm.): 148
Check valves: No

Model: Stainless cap drain 1" 3/8 x 29/32 mm
Ø A (mm.): 29/32
Thread B (mm.): 1" 3/8
Ø B (mm.): 34
C (mm.): 58
D (mm.): 86
E (mm.): 157
Check valves: No

Model: Stainless cap drain 2" 1/4 x 38 mm
Ø A (mm.): 38
Thread B (mm.): 2" 1/4
Ø B (mm.): 57
C (mm.): 77
D (mm.): 95
E (mm.): 172
Check valves: No

Model: Stainless cap drain 2" 1/4 x 38 mm with valve
Ø A (mm.): 38
Thread B (mm.): 2" 1/4
Ø B (mm.): 57
C (mm.): 77
D (mm.): 95
E (mm.): 172
Check valves: Yes

Model: Stainless cap drain 2" 1/4 x 53 mm with valve
Ø A (mm.): 53
Thread B (mm.): 2" 1/4
Ø B (mm.): 57
C (mm.): 77
D (mm.): 46
E (mm.): 126
Check valves: Yes

Model: Nylon drain 1" 1/2 mm 38
Ø A (mm.): 38
Thread B (mm.): 1" 1/2
Ø B (mm.): 48
C (mm.): 78
D (mm.): 70
E (mm.): 135
Check valves: Yes

Model: Stainless steel head outlet 1" 1/2 - 11BSP
Ø A (mm.): -
Thread B (mm.): 1" 1/2 - 11BSP
Ø B (mm.): 48
C (mm.): 78
D (mm.): 117
E (mm.): 135
Check valves: Yes
