Product Details
- Power supply
- 12 V
- Typology
- Mechanical Linear Actuator
- Original Ref.
- M81130
- Series
- T1 Linear Actuator
- Actuator model
- Linear Actuator: Type 1
- Maximum displacement
- 11000 kg.
Description

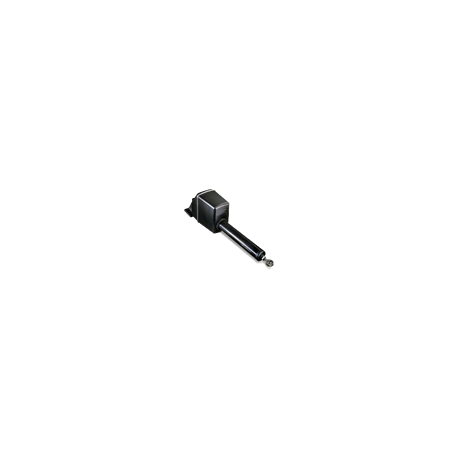

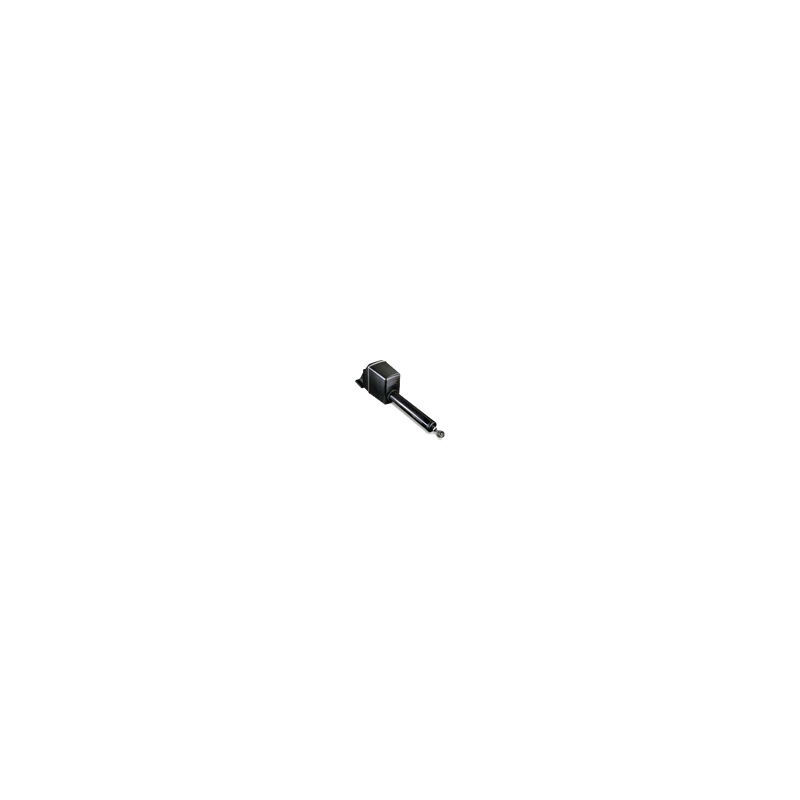

Raymarine mechanical linear actuators, the most widely used for sailboats, are powerful, quiet, and offer optimal rudder movement speed. Mounted below deck, they move the rudder shaft directly by acting on the dedicated arm (recommended installation) or on the rudder post. The linear actuator connects to the rudder shaft via an independent arm. You may need to request additional installation accessories from your steering system manufacturer. The steering system must be capable of being feedback-controlled from the rudder.
- Maximum thrust: 295 kg
- Maximum actuator length: 300 mm
- Hard-to-hard-to-hard time (+/- 35°, no load): 11 seconds
- Maximum torque: 735mn
- Power consumption: 18-36W
- Compatible with pilot control unit: ACU-200
Note:
- The linear actuator connects to the rudder shaft via an independent arm. You may need to request additional installation accessories from your steering system manufacturer.
- It is necessary that the steering system can be fed back from the rudder
