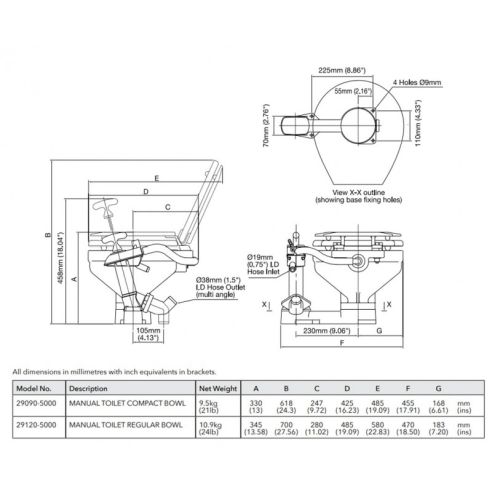

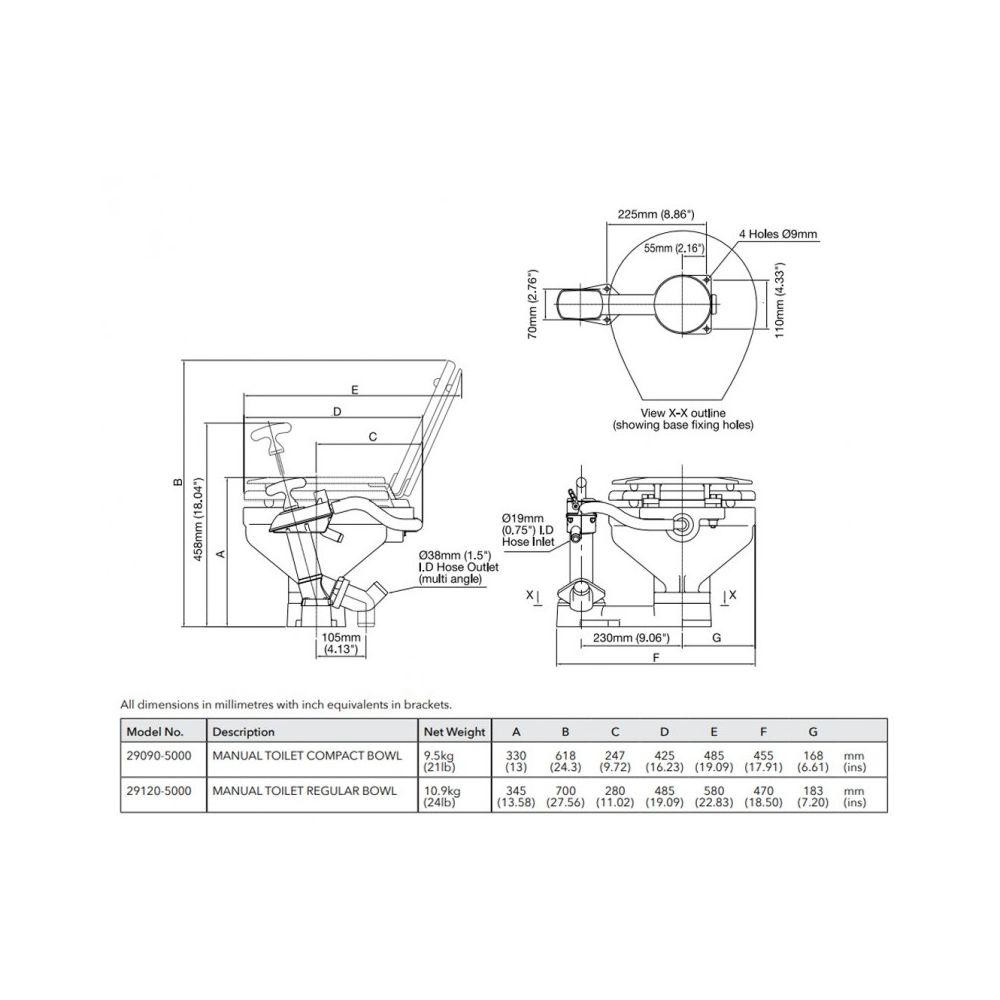

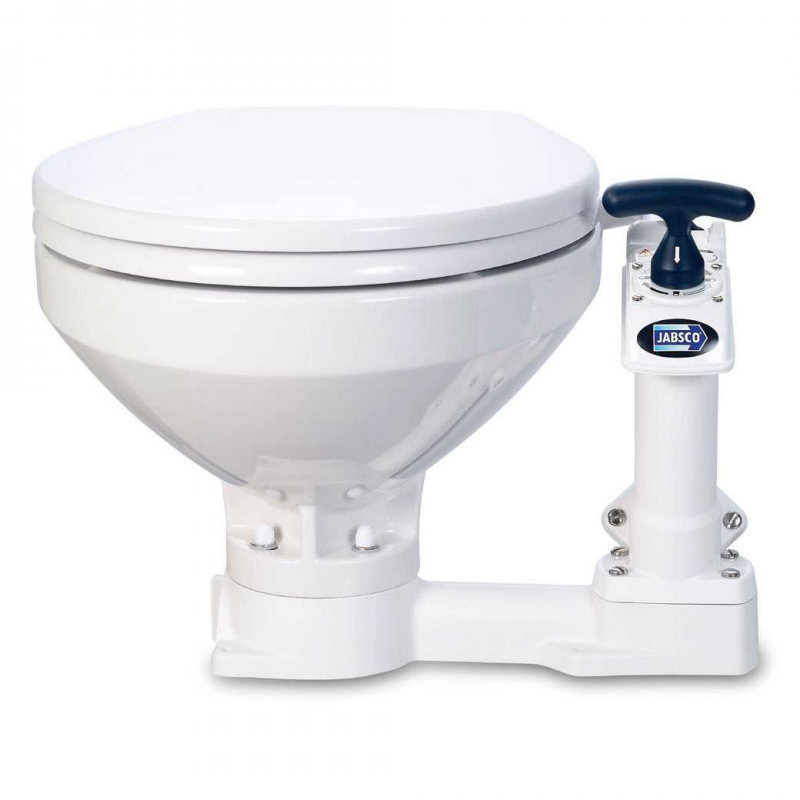

JABSCO manual marine toilet in white porcelain, with nylon plunger pump. Turning the knob 90° activates the lock/unlock which prevents overflow and backflow of purge. Seat in white enameled wood. Inlet pipe Ø 20 mm, outlet pipe Ø 38 mm. Can be installed above or below the waterline. Dimensions mm height 340 x width 450 x depth 410 Weight kg. 9.3.
Purchased together
Correlated accessories
Alternative products

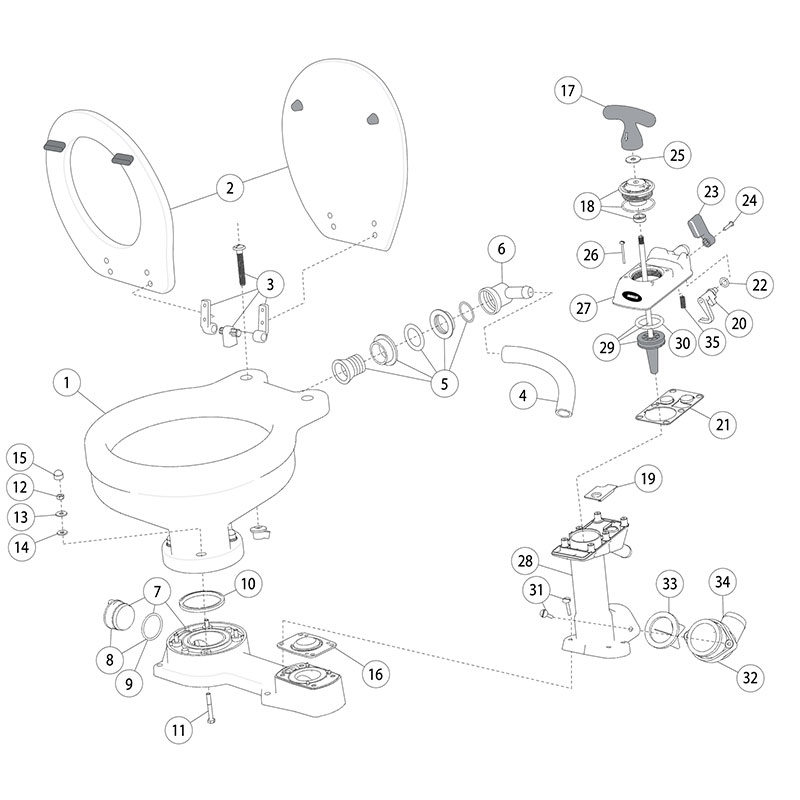

Each number in the image corresponds to a spare part. You can find the original part number in the table below. The codes highlighted in orange are clickable and allow you to purchase the part directly. For any questions or support, contact assistenza@hinelson.com
| Ref. | Description | Original code |
|---|---|---|
| 1 | Compact toilet bowl (small) | 29096-1000 |
| 1 | Regular toilet bowl (large) | 29126-1000 |

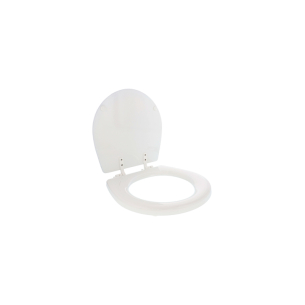

| 2 | Compact axle and lid - small (all variants) | 29097-1000 |

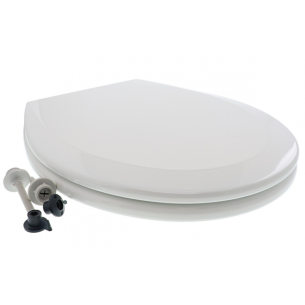

| 2 | Standard Axle and Lid - Large (Pre 2018) | 29127-1000 |

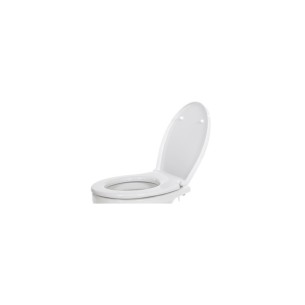

| 2 | Standard axle and lid - large (From 2018) | 58104-1000 |

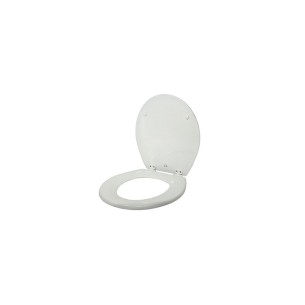

| 2 | SOFT CLOSE axle and lid (From 2018) | 58104-2000 |
| 3 | Compact Hinge Set - Small (All Variants) | 29098-1000 |
| 3 | Standard Hinge Set - Large (Pre 2018) | 29098-2000 |

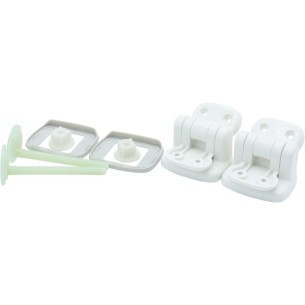

| 3 | Standard Hinge Set - Large (From 2018) | 58105-1000 |
| 3 | SOFT CLOSE hinge set (From 2018) | 58105-2000 |
| 4 | White toilet tube compact (small) | 29035-1000 |
| 4 | Standard white toilet hose (large) | 29035-1001 |

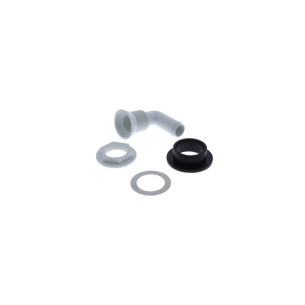

| 5 + 6 | Toilet bowl connection | 58107-1000 |
| 7 | Toilet base | 29041-1000 |
| 8 | Inspection cap | 29028-2000 |

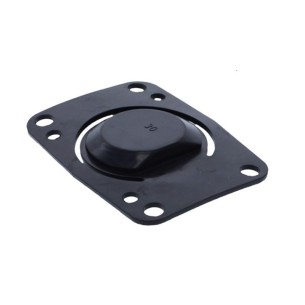

| 16 | Lower valve | 29043-0000 |

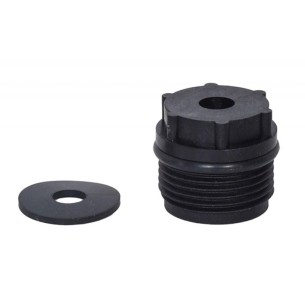

| 18 | Sealing rings (before 1997) | 29044-0000 |

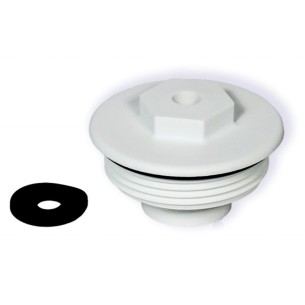

| 18 | Sealing rings (from 1998 to 2007) | 29044-2000 |

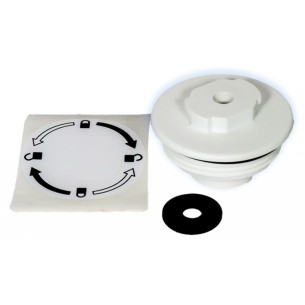

| 18 | Sealing rings (since 2008) | 29044-3000 |

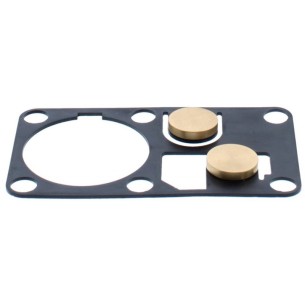

| 21 | Upper valve | 29042-0000 |
| 29 | Piston | 29046-3000 |
| 30 | Piston O-ring | 29017-1000 |

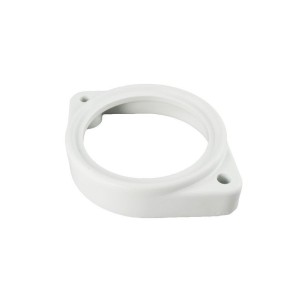

| 32 | Exhaust flange | 29091-1000 |

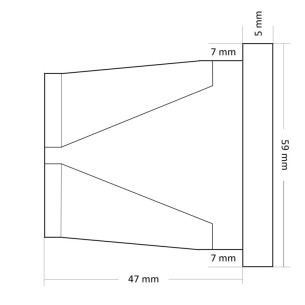

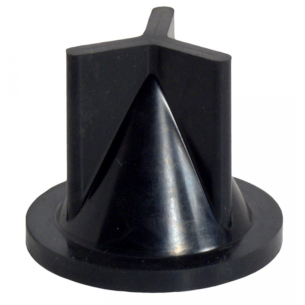

| 33 | Non-return valve | 29092-1000 |

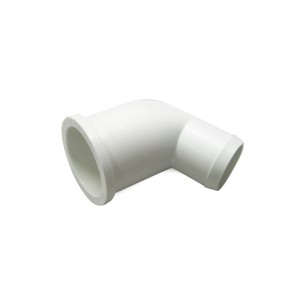

| 34 | Exhaust elbow | 29029-1000 |
| Manual pump | 29040-3000 | |
| Toilet Repair Kit (Black Handle) | 29045-0000 | |

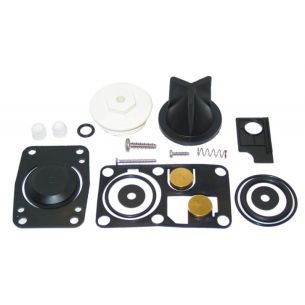

| Toilet Repair Kit (grey handle) | 29045-2000 | |

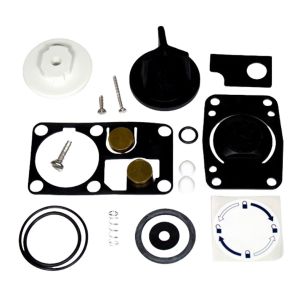

| Toilet Repair Kit (blue handle) | 29045-3000 | |

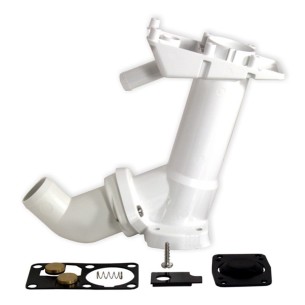

| Pump cylinder kit | 29051-2000 | |

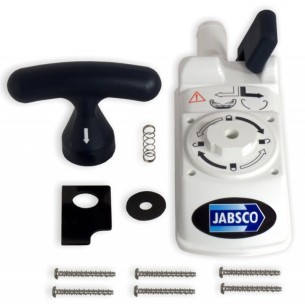

| Pump cover kit | 29094-3000 | |

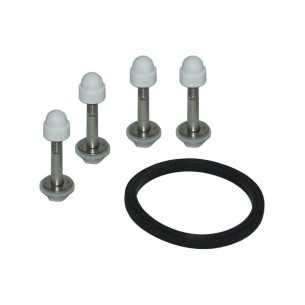

| Toilet assembly kit | 29047-0000 |
