D20AX Drawer Refrigerator - Vitrifrigo

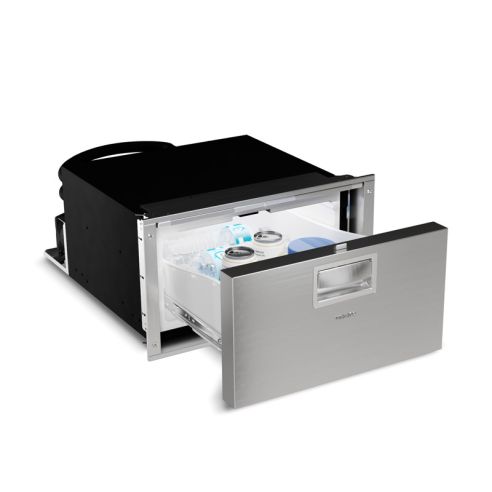

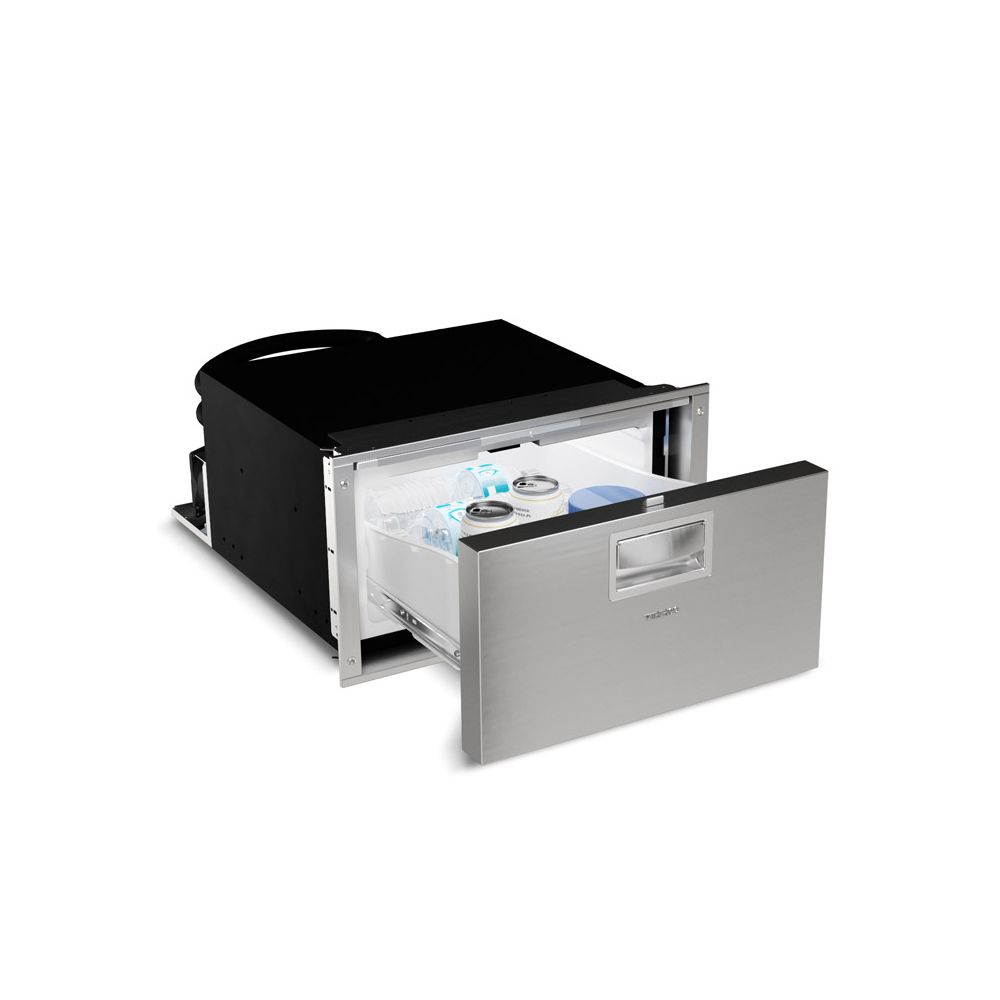

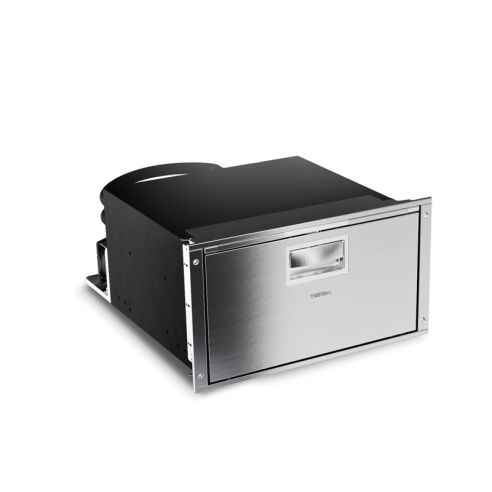

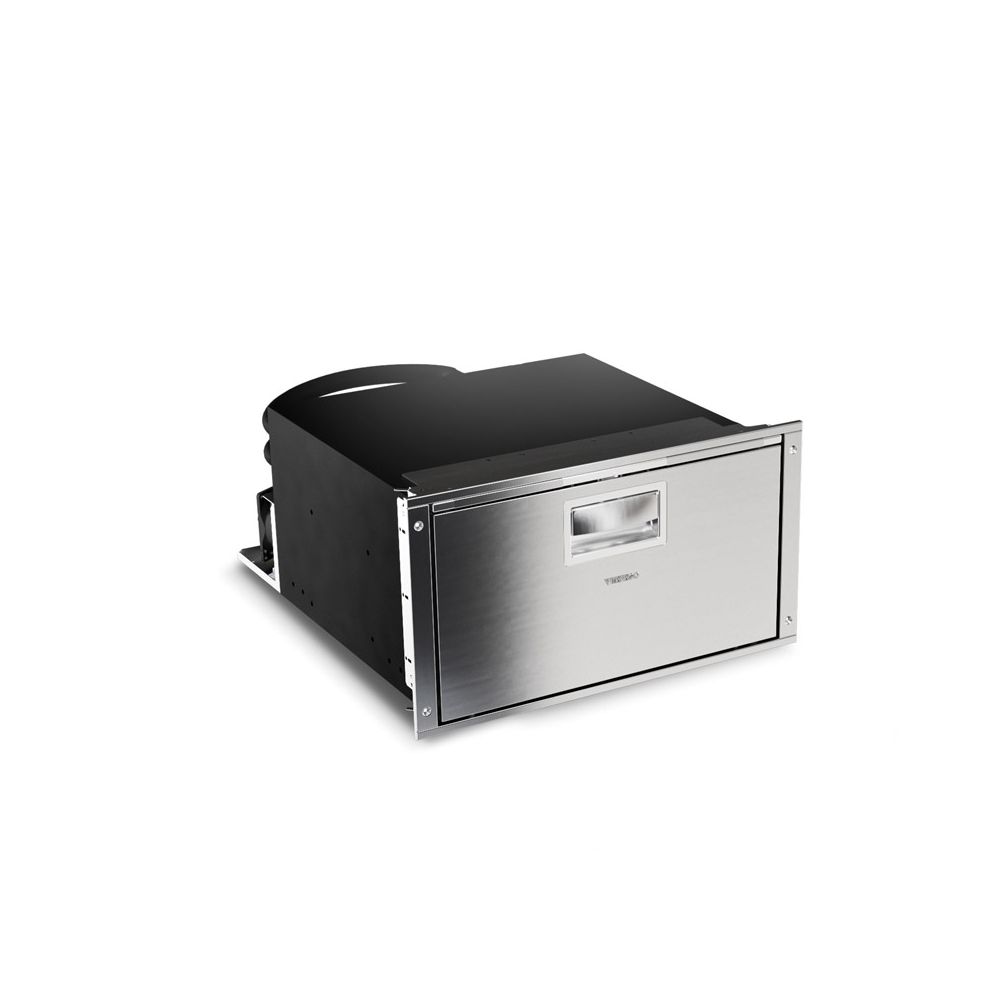

The Vitrifrigo D20AX HP is a stainless‑steel drawer fridge‑freezer designed for installation on boats and recreational vehicles where available space is limited. Its compact layout makes it suitable for cabins, galley modules and small technical lockers. The stainless‑steel construction offers resistance in the marine environment and easy cleaning. The refrigeration system supports safe storage of fresh and frozen provisions, enhancing onboard autonomy during cruises or at anchor.

Purchased together

Rating:
(0)

Alternative products

Product Details

Supply voltage
12/24 V
Width
498 mm
Height
276 mm
Capacity
20 lt.
Model
D20AX
Series
Compact Drawer
Depth
568 mm
Motor unit
External remote control
Door opening
Apertura a cassetto

Description

Compact, high performance for tight spaces

The Vitrifrigo D20AX HP drawer fridge-freezer, Special Installation series, is designed to deliver top performance where space is at a premium—on yachts, motorhomes and recreational vehicles. The NextGen R600a compressor makes it 3 kg lighter than traditional units, with low noise and reduced vibration. It ensures optimized power draw and consistent cooling capacity. Models fitted with this compressor are identified by the HP (High Performance) designation.

Fridge and freezer in one solution

The D20AX HP is an All‑in‑One model: it can be easily set to operate as a refrigerator or as a freezer to suit onboard requirements. The advanced digital thermostat provides precise temperature control and optimizes compressor operation, ensuring the best balance between performance and energy consumption.

  • Night Mode: reduces noise levels during nighttime.
  • Freezer Mode: quickly enables freezer operation when needed.

Reliable efficiency even in high ambient temperatures

Engineered to perform in demanding climates, it complies with international climate classes:

  • T Class (16/43°C): stable operation with ambient temperatures up to 43°C.
  • ST Class (16/38°C): reliable performance up to 38°C.

Automotive‑grade components make it ideal for installation on motorhomes, yachts, vans and custom projects.

Flexible installation, robust build

The remoteable compressor unit can be installed up to 1.5 metres away, freeing up usable space in the main compartment. With a total capacity of 20 litres, it accommodates bottles up to 155 mm in height. The removable inner bin simplifies organization, while stainless‑steel drawer slides ensure solidity and long‑term durability. Supplied with a low‑profile 4‑sided fixing flange.

Supply scope

  • Low‑profile 4‑sided fixing flange
