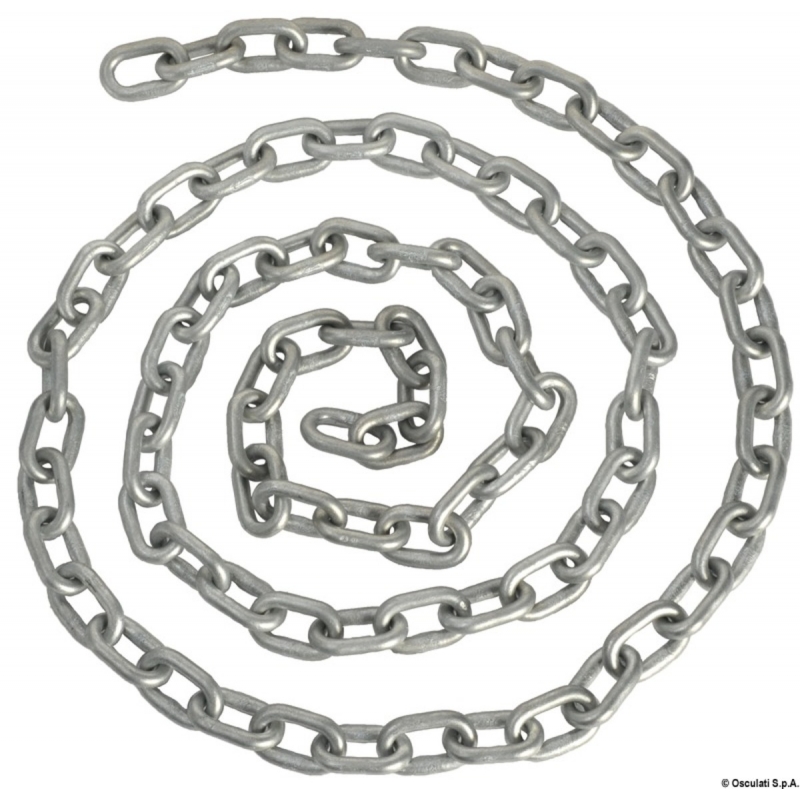

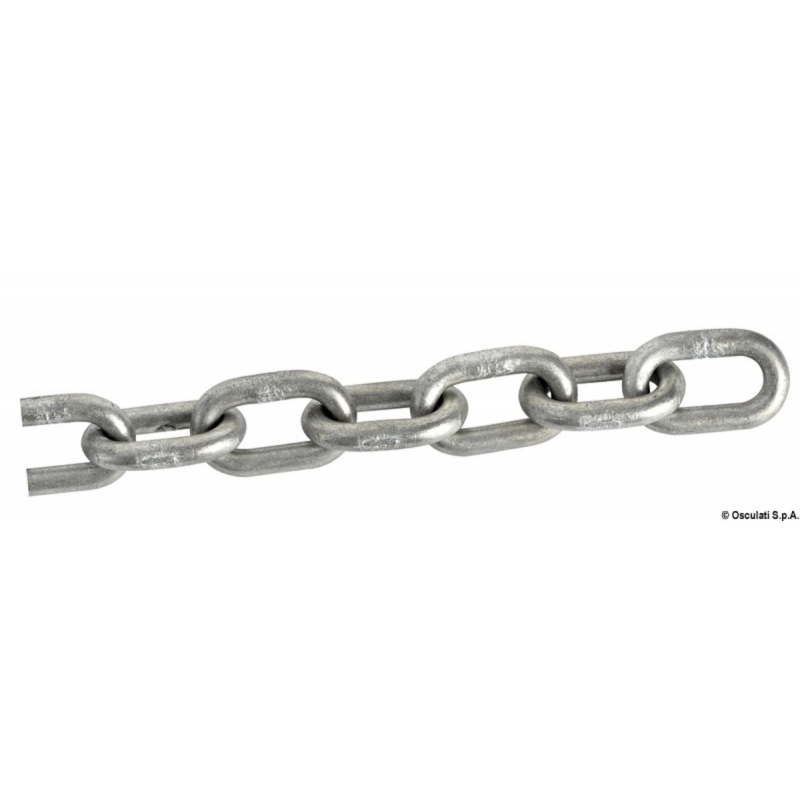

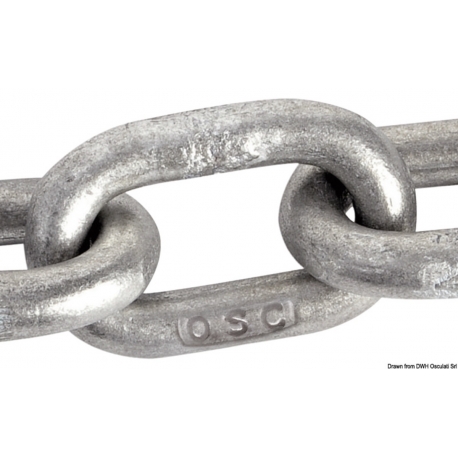

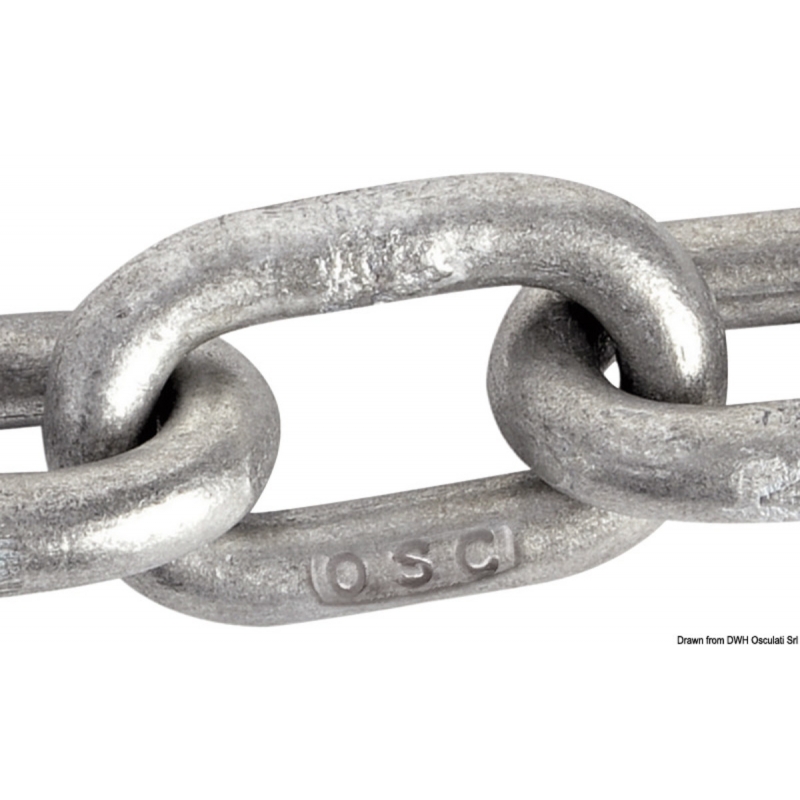

Hot-dip galvanized calibrated chain suitable for anchor windlass

Model: M1
Length brim: 25 m
Ø mm: 6
Kg/m: 0.8
Working load (kg): 400
Breaking load (kg): 1600

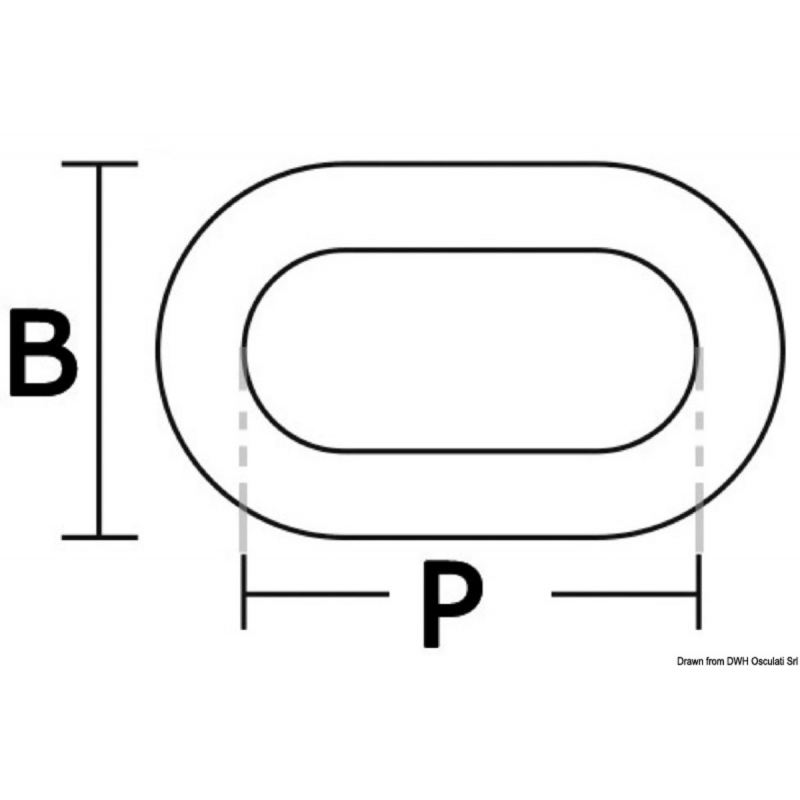

P (mm): 18.5
B (mm): 20

Model: M2
Length of brim: 25 m
Ø mm: 8
Kg/m: 1.4
Working load (kg): 800
Breaking load (kg): 3200
P (mm): 24
B (mm): 26

Model: M3
Tension length: 25 m
Ø mm: 10
Kg/m: 2.35
Working load (kg): 1250
Breaking load (kg): 5000
P (mm): 30
B (mm): 35

Model: M4
Tension length: 25 m
Ø mm: 12
Kg/m: 3.35
Working load (kg): 1800
Breaking load (kg): 6500
P (mm): 36
B (mm): 40

Model: M5
Length of brim: 50 m
Ø mm: 6
Kg/m: 0.8
Working load (kg): 400
Breaking load (kg): 1600
P (mm): 18.5
B (mm): 20

Model: M6
Length of brim: 50 m
Ø mm: 8
Kg/m: 1.4
Working load (kg): 800
Breaking load (kg): 3200
P (mm): 24
B (mm): 26

Model: M7
Length of brim: 50 m
Ø mm: 10
Kg/m: 2.35
Working load (kg): 1250
Breaking load (kg): 5000
P (mm): 30
B (mm): 35

Model: M8
Tension length: 50 m
Ø mm: 12
Kg/m: 3.35
Working load (kg): 1800
Breaking load (kg): 6500
P (mm): 36
B (mm): 40

Model: M9
Length of brim: 50 m
Ø mm: 14
Kg/m: 4.4
Working load (kg): 2500
Breaking load (kg): 10000
P (mm): 41
B (mm): 47

Model: M10
Length of brim: 75 m
Ø mm: 6
Kg/m: 0.8
Working load (kg): 400
Breaking load (kg): 1600
P (mm): 18.5
B (mm): 20

Model: M11
Length of brim: 75 m
Ø mm: 8
Kg/m: 1.4
Working load (kg): 800
Breaking load (kg): 3200
P (mm): 24
B (mm): 26

Model: M12
Length of brim: 75 m
Ø mm: 10
Kg/m: 2.35
Working load (kg): 1250
Breaking load (kg): 5000
P (mm): 30
B (mm): 35

Model: M13
Tension length: 75 m
Ø mm: 12
Kg/m: 3.35
Working load (kg): 1800
Breaking load (kg): 6500
P (mm): 36
B (mm): 40

Model: M14
Length of brim: 100 m
Ø mm: 6
Kg/m: 0.8
Working load (kg): 400
Breaking load (kg): 1600
P (mm): 18.5
B (mm): 20

Model: M15
Length of brim: 100 m
Ø mm: 8
Kg/m: 1.4
Working load (kg): 800
Breaking load (kg): 3200
P (mm): 24
B (mm): 26

Model: M16
Tension length: 100 m
Ø mm: 10
Kg/m: 2.35
Working load (kg): 1250
Breaking load (kg): 5000
P (mm): 30
B (mm): 35

Model: M17
Tension length: 100 m
Ø mm: 12
Kg/m: 3.35
Working load (kg): 1800
Breaking load (kg): 6500
P (mm): 36
B (mm): 40

Model: M18
Tension length: 100 m
Ø mm: 14
Kg/m: 4.4
Working load (kg): 2500
Breaking load (kg): 10000
P (mm): 41
B (mm): 47
