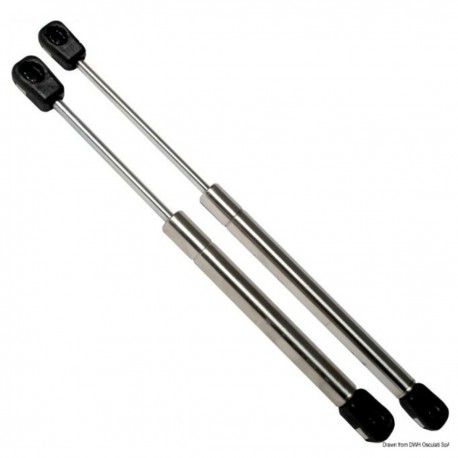

Stainless steel gas spring with ball head

Model: M1
Open mm: 254
Closed mm: 178
Stroke mm: 76
Reaction kg: 9
Body Ø mm: 15
Stem Ø mm: 6
Required ball Ø mm: 10

Model: M3
Open mm: 305
Closed mm: 216
Stroke mm: 89
Reaction kg: 20
Body Ø mm: 15
Stem Ø mm: 6
Ball Ø required mm: 10

Model: M4
Open mm: 380
Closed mm: 240
Stroke mm: 140
Reaction kg: 12
Body Ø mm: 18
Stem Ø mm: 8
Ball Ø required mm: 10

Model: M5
Open mm: 380
Closed mm: 241
Stroke mm: 140
Reaction kg: 18
Body Ø mm: 18
Stem Ø mm: 8
Ball Ø required mm: 10

Model: M6
Open mm: 380
Closed mm: 241
Stroke mm: 140
Reaction kg: 26
Body Ø mm: 18
Stem Ø mm: 8
Ball Ø required mm: 10

Model: M7
Open mm: 380
Closed mm: 241
Stroke mm: 140
Reaction kg: 38
Body Ø mm: 18
Stem Ø mm: 8
Ball Ø required mm: 10

Model: M8
Open mm: 500
Closed mm: 295
Stroke mm: 205
Reaction kg: 20
Body Ø mm: 18
Stem Ø mm: 8
Ball Ø required mm: 10

Model: M9
Open mm: 500
Closed mm: 295
Stroke mm: 205
Reaction kg: 29
Body Ø mm: 18
Stem Ø mm: 8
Ball Ø required mm: 10

Model: M10
Open mm: 500
Closed mm: 295
Stroke mm: 205
Reaction kg: 38
Body Ø mm: 18
Stem Ø mm: 8
Ball Ø required mm: 10

Model: M11
Open mm: 600
Closed mm: 345
Stroke mm: 255
Reaction kg: 20
Body Ø mm: 18
Stem Ø mm: 8
Ball Ø required mm: 10

Model: M12
Open mm: 600
Closed mm: 345
Stroke mm: 255
Reaction kg: 30
Body Ø mm: 18
Stem Ø mm: 8
Ball Ø required mm: 10

Model: M13
Open mm: 600
Closed mm: 345
Stroke mm: 255
Reaction kg: 40
Body Ø mm: 18
Stem Ø mm: 8
Ball Ø required mm: 10

Model: M14
Open mm: 700
Closed mm: 401
Stroke mm: 299
Reaction kg: 30
Body Ø mm: 22
Stem Ø mm: 10
Ball Ø required mm: 10

Model: M15
Open mm: 700
Closed mm: 401
Stroke mm: 299
Reaction kg: 45
Body Ø mm: 22
Stem Ø mm: 10
Ball Ø required mm: 10

Model: M16
Open mm: 922
Closed mm: 536
Stroke mm: 386
Reaction kg: 60
Body Ø mm: 22
Stem Ø mm: 10
Ball Ø required mm: 10
