Product Details

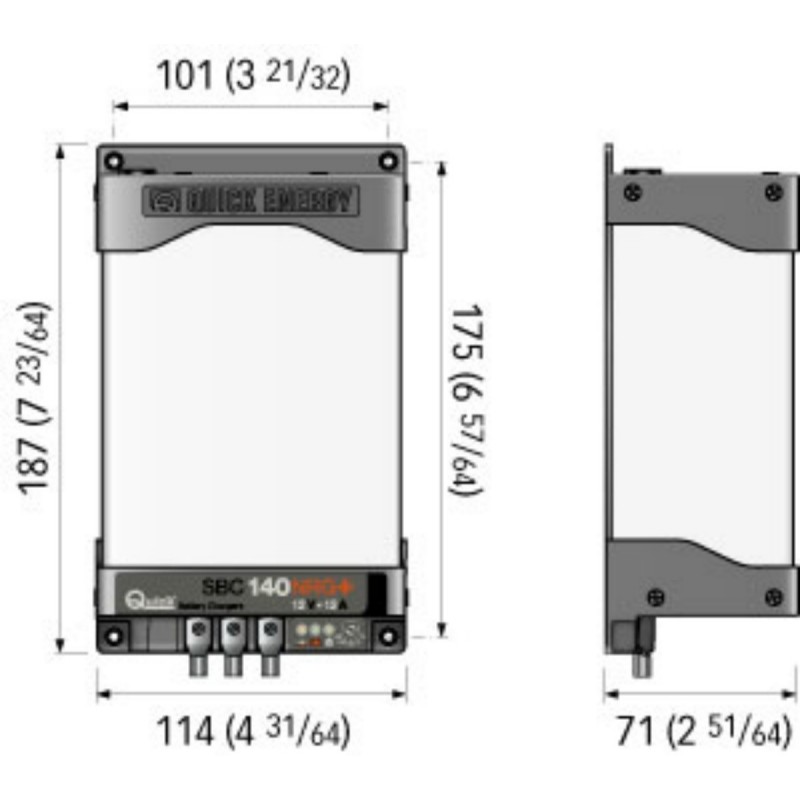

- Height (mm)
- 187
- Width (mm.)
- 114
- Depth (mm)
- 71
- Weight
- 1.1 kg.
- Supply voltage
- 12
264÷83 Vac with power reduction under 108 Vac
- Temperature of use
- -15°C to 70°C, with linear power reduction above 45°C
- Maximum output current
- 12A
- Charging voltage in absorption
- 14.1 Vdc OL - 14.4 Vdc SL/GEL/AGM - 14.7 Vdc Optima® - 14.7 Vdc Optima
- Float charging voltage
- 13.4 Vdc OL - 13.6 Vdc AGM - 13.8 Vdc SL/GEL/Optima®
- Number of outputs
- 2
- Frequency
- 45 ÷ 66 Hz
- Efficiency
- ≥ 83%
- Max absorption (230/240 Vac)
- 0.9 A
- Max absorption (120 Vac)
- 1.7 A
- Noise (acoustic)
- 43 dbA @ 1 m

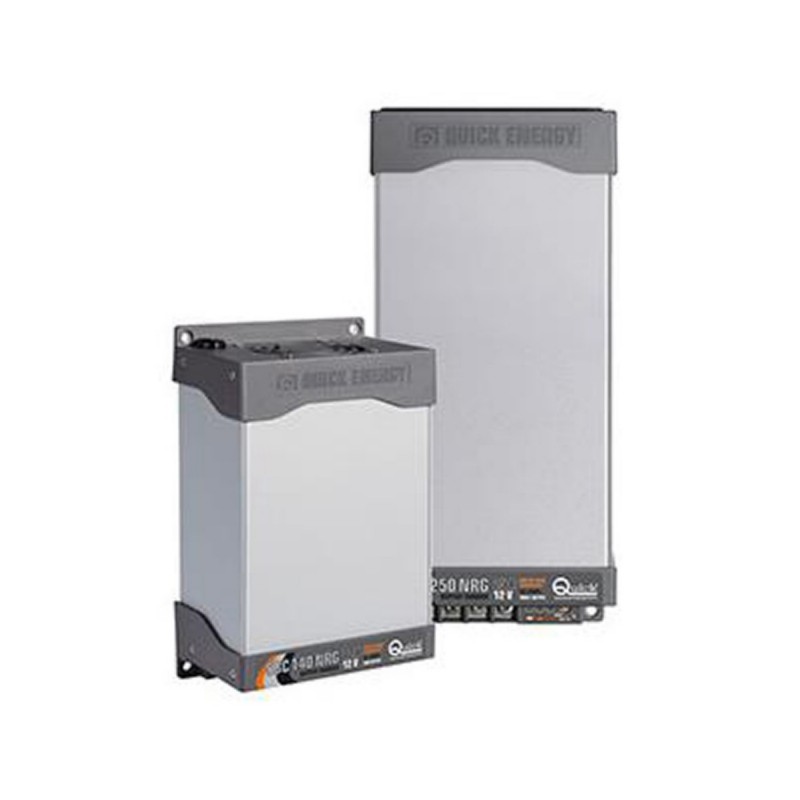

Description
Quick has been designing and manufacturing battery chargers for about 25 years, has always proven to be a step ahead of market standards.
With the SBC series NRG once again confirms its success by choosing the most advanced technological solutions and devoting special care to improving energy efficiency.
The benefits derived from the new design translate into: reduced consumption, less heat development, contained acoustic noise, less invasive derating, and greater system reliability.
Also characterizing the new SBC NRG PLUS series are thereliability and advantages already tested with the previous ADV PLUS series and all levels of protection designed to ensure maximum safeguarding of the batteries, the ability to deliver full power even under extreme conditions and the use of high-quality components and materials.
Advantages:
- IUoU three-stage charging feature.
- High efficiency.
- Multiple outputs to charge multiple groups of batteries.
- Differentiated charging for liquid electrolyte batteries (open or sealed), gel, AGM, Optima®
- Integrated output fuse inside the charger.
- Ability to deliver full power with low AC mains supply voltage.
- Low residual ripple on output.
- Universal AC mains input
- Power factor (cos ϕ) of 1.
- Variable speed of the cooling fan.
- Compatibility with generators.
- Short circuit, overload, output overvoltage and overheating protections.
- Operation over a wide range of ambient temperatures.
