Compact Electric Toilet Series 37010 - Jabsco
Compact Electric Toilet Series 37010 - Jabsco

Compact Electric Toilet Series 37010 - Jabsco

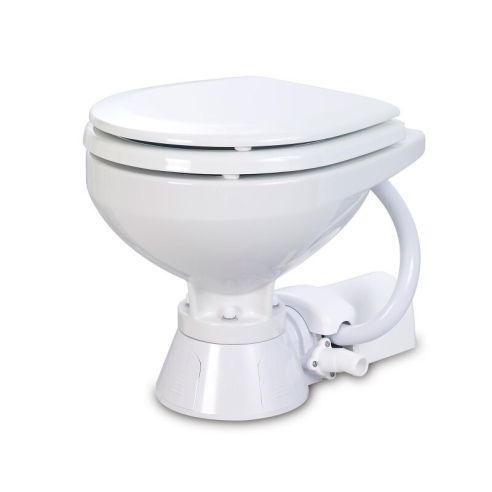

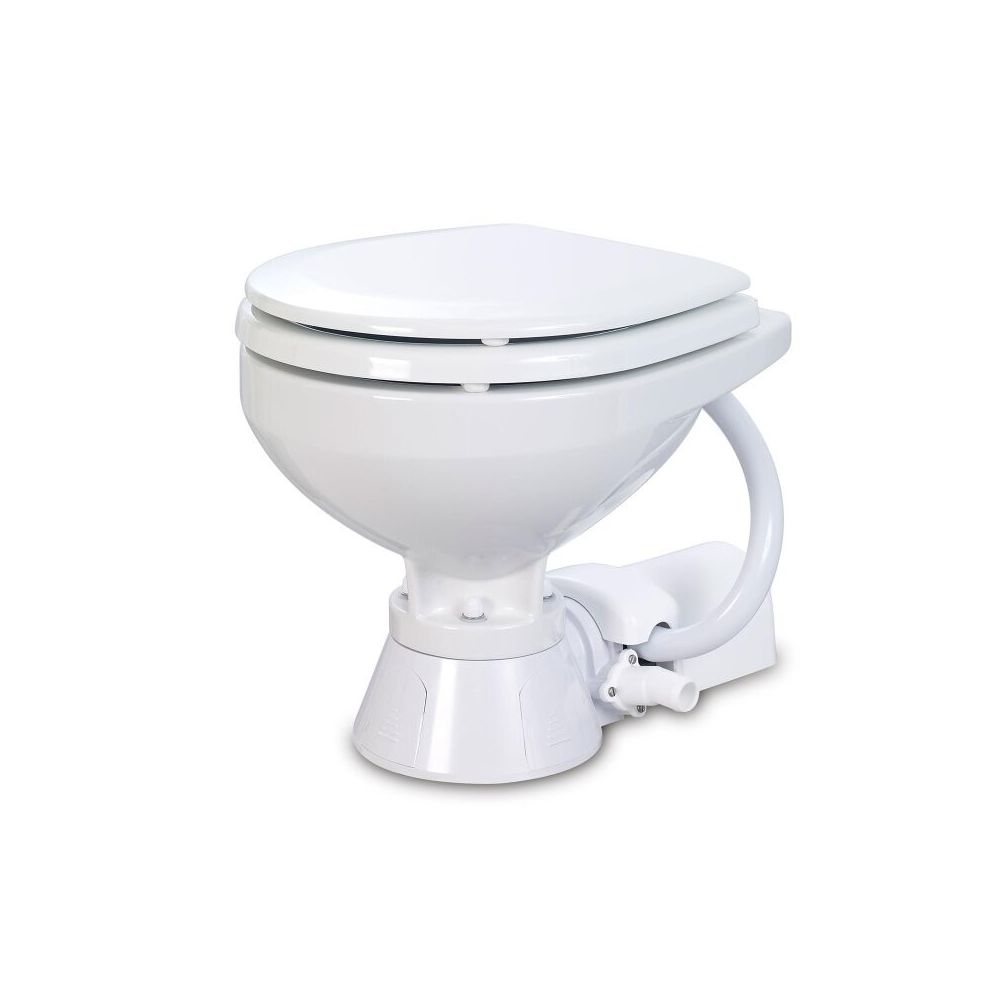

Jabsco Compact Series 37010 Electric Boat Toilet. White porcelain electric toilet with enameled wood seat. Pump control switch. Complies with USCS 183-410 and ISO 8846 Marine (ignition protection). 19mm diameter inlet hose connection, 25mm diameter outlet hose connection. Dimensions: 35.1cm x 35.2cm. Depth: 43cm.

Go to the spare parts list »

Purchased together

Rating:
(0)
Typology
Supply voltage
£413.36 -17.31%
£341.82
FA1940
Quantity
Shop easy, no surprises.
Import duties are displayed at checkout
shop freely from the US!

81
Available in stock
Verifica disponibilità in negozio
HiNelson Wallet
Earn +£18.00 with this purchase
Credited after delivery · log in to start
×

HiNelson Wallet

With every purchase on HiNelson you earn credit in your wallet to use on your future orders.

  • Earn - With each purchase you automatically receive credit proportional to the amount spent.
  • Save - Use your accumulated credit to get discounts on your next orders.
  • No expiration - Your credit remains available in your account.
Delivery between Thursday 30 Jul and Friday 31 Jul
Easy return within 14 days Learn how »

Correlated accessories

Jabsco Compact Toilet Hinges
Marine toilet spare parts
Jabsco

Jabsco Compact Toilet Hinges

FA1971
(1)
£16.05
Jabsco Compact Toilet Hinges
Jabsco Regular Toilet Hinges
  • -1.45%
Marine toilet spare parts
Jabsco

Jabsco Regular Toilet Hinges

FA1972
(3)
£16.82 £17.06
Jabsco Regular Large Toilet Hinges
Jabsco 35445-0000 - Gasket
Last items in stock
Pump spare parts
Jabsco

Jabsco 35445-0000 - Gasket

AF1292
£3.82
Plastic washer. Compatible with Jabsco toilets series 37010, 37045, 37245, 37055, 37255, 37075, 37275
Jabsco 2574-0000 - Wear Plate
  • -12.2%
Pump spare parts
Jabsco

Jabsco 2574-0000 - Wear Plate

AF1380
£31.35 £35.70
Wear plate, brass. Diameter approx. 90.5mm. Thickness approx. 3.4mm. Internal hole diameter 45mm.
View
Jabsco 1040-0000 - Sealing Ring
  • -1.52%
Marine toilet spare parts
Jabsco

Jabsco 1040-0000 - Sealing Ring

AF1386
£22.93 £23.29
Sealing ring.
Jabsco 29096-0000 - Compact toilet bowl
  • -16.97%
Marine toilet spare parts
Jabsco

Jabsco 29096-0000 - Compact toilet bowl

AF1412
£139.17 £167.60
Compact toilet bowl.
View
Jabsco 29097-1000 - Compact Toilet Seat/Lid
  • -16.28%
Marine toilet spare parts
Jabsco

Jabsco 29097-1000 - Compact Toilet Seat/Lid

AF1413
£67.29 £80.37
Seat, lid, and hinge set for compact toilets. Compatible with all Jabsco manual toilets from the 29090 series built after 1986, as well as the 37010-009X, 37010-309X, 37045-009X, 37045-309X, 37245-009X, and 37245-309X series.
Jabsco 29126-0000 - Regular toilet bowl
  • -17.38%
Marine toilet spare parts
Jabsco

Jabsco 29126-0000 - Regular toilet bowl

AF1416
£210.29 £254.53
Regular toilet bowl. Compatible with all Jabsco manual toilets of the 29120 series from year of manufacture 1986, as well as the 37010-109X, 37010-4X9X, 37045-109X, 37045-4X9X, 37245-109X, 37245-4X9X series, up to year of manufacture 2018.
View
Jabsco 29127-1000 - Regular Toilet Seat/Lid
  • -16.32%
Marine toilet spare parts
Jabsco

Jabsco 29127-1000 - Regular Toilet Seat/Lid

AF1417
£95.58 £114.22
Seat, lid, and hinge set for regular toilets. Compatible with all Jabsco 29120 series manual toilets built after 1986, as well as the 37010-109X, 37045-109X, 37245-109X, and 37X75 series.
Jabsco 37004-1000 - Toilet Base Assembly
  • -16.5%
Marine toilet spare parts
Jabsco

Jabsco 37004-1000 - Toilet Base Assembly

AF1419
£124.64 £149.27
Replacement toilet base assembly. Compatible with Jabsco toilets series 37010, 37045, 37245, 37055, 37255, 37075, and 37275.
Jabsco 37006-0000 - Toilet Pump Impeller
  • -15.36%
Marine toilet spare parts
Jabsco

Jabsco 37006-0000 - Toilet Pump Impeller

AF1420
£34.40 £40.65
Compatible with Jabsco toilets series 37010, 37045, 37245, 37055, 37255, 37075, 37275
Jabsco 37014-0000 - Macerator Housing
  • -15.69%
Marine toilet spare parts
Jabsco

Jabsco 37014-0000 - Macerator Housing

AF1422
£34.40 £40.80
Compatible with Jabsco toilets series 37010, 37045, 37245, 37055, 37255, 37075, 37275
Jabsco 37020-0000 - 37010 Series Toilet Switch 12/24V
  • -16.54%
Marine toilet spare parts
Jabsco

Jabsco 37020-0000 - 37010 Series Toilet Switch 12/24V

AF1423
£79.52 £95.29
Compatible with Jabsco 37010 series toilets
Jabsco 37040-0000 - 37010 Series Electric Toilet Repair Kit
  • -16.11%
Marine toilet spare parts
Jabsco

Jabsco 37040-0000 - 37010 Series Electric Toilet Repair Kit

AF1426
£97.87 £116.67
Compatible with Jabsco 37010 Series toilets. (formerly FNI code 2424863)
Jabsco 37041-0010 - Replacement Motor Pump for 12V Electric Toilets
  • -17.15%
Marine toilet spare parts
Jabsco

Jabsco 37041-0010 - Replacement Motor Pump for 12V Electric Toilets

AF1427
£287.52 £347.04
Compatible with Jabsco 37010 Series toilets
View
Jabsco 37056-1000 Toilet Grinder Blade Kit
Marine toilet spare parts
Jabsco

Jabsco 37056-1000 Toilet Grinder Blade Kit

AF1430
£12.99
Blade + locking nut. Compatible with Jabsco toilets series 29100, 29200, 37010, 37045, 37245, 37055, 37255, 37075, 37275
Jabsco 37064-0000 - Replacement 12V Toilet Motor
  • -17.46%
Marine toilet spare parts
Jabsco

Jabsco 37064-0000 - Replacement 12V Toilet Motor

AF1431
£364.76 £441.94
Compatible with Jabsco 37010 series toilets
Jabsco 43990-0066 - O-ring
Marine toilet spare parts
Jabsco

Jabsco 43990-0066 - O-ring

AF1433
£6.11
Compatible with Jabsco toilets series 37010, 37045, 37245, 37055, 37255, 37075, 37275
Jabsco 44101-1000 - O-ring
Marine toilet spare parts
Jabsco

Jabsco 44101-1000 - O-ring

AF1434
£9.17
Compatible models: 37010, Quiet Flush 37045, 37245, Quiet Flush E2 38045, 38245, Designer Style 37075, 37275
Jabsco 44106-1000 - Check Valve
Marine toilet spare parts
Jabsco

Jabsco 44106-1000 - Check Valve

AF1435
£12.23
Compatible with Jabsco 37010 Series Electric Toilets, 37045 and 37245 Quiet Flush Electric Toilets, and 37075 and 37275 Designer Style Toilets
Jabsco 44107-1000 - 1" Drain Fitting
  • -1.49%
Marine toilet spare parts
Jabsco

Jabsco 44107-1000 - 1" Drain Fitting

AF1436
£12.23 £12.41
Outlet connection 25mm (1"). Compatible with toilets of the 37010, 37X45, 37X55 series
Jabsco 58104-2000 - Regular Soft Close Toilet Seat and Lid Set Jabsco 58104-2000 - Regular Soft Close Toilet Seat and Lid Set 2
  • -16.37%
Marine toilet spare parts
Jabsco

Jabsco 58104-2000 - Regular Soft Close Toilet Seat and Lid Set

AF1445
£98.64 £117.95
Compatible with Jabsco 58XX0-2, 58XX0-3, 29120-5, 37010-4 and 37X45-4 comfort size toilets from year of manufacture 2018. The soft-close mechanism ensures quiet and smooth operation of the lid. Seat dimensions: Length: 420 mm Width: 365 mm Height: 40 mm Lid dimensions: 423 mm x 365 mm with 155 mm spacing between mounting holes for convenient installation.
Jabsco 6342-0000 - Retaining Ring Set (3 pcs)
  • -1.46%
Marine toilet spare parts
Jabsco

Jabsco 6342-0000 - Retaining Ring Set (3 pcs)

AF1454
£21.40 £21.72
Compatible with Jabsco toilets series 37010, 37055, 37255, 37045, 37245, 37075, 37275 and pump 18590
Jabsco 91027-0011 - Screws 8-32 x 3/8 (4pcs)
Marine toilet spare parts
Jabsco

Jabsco 91027-0011 - Screws 8-32 x 3/8 (4pcs)

AF1455
£4.58
Compatible with Jabsco toilets series 37010, 37045, 37245, 37055, 37255, 37075, 37275
Jabsco 98023-0080 - Adapter 25-38 mm
  • -4.13%
Marine toilet spare parts
Jabsco

Jabsco 98023-0080 - Adapter 25-38 mm

AF1458
£22.17 £23.12
Compatible with Jabsco toilets 37010, 37045, 37245, 37055, 37255, 37075, 37275

Alternative products



Product Details

Weight
15.4 kg.
Width
352 mm.
Height
351 mm.
Model
Compact
Outlet pipe diameter
Ø 25 mm.
Inlet pipe diameter
Ø 19 mm.
Mug
White porcelain
Tablet
White enamelled wood
Depth
430 mm.
Original Reference
37010-3092 37010-3094
671880628303

Description

Jabsco 37010 Compact Series Toilet Exploded View

Each number in the image corresponds to a spare part. You can find the original part number in the table below. The codes highlighted in orange are clickable and allow you to purchase the part directly. For any questions or support, contact [email protected]

Ref. Description Original code
1 Compact axle and lid (small cup) 29097-1000
1 Standard Axle and Lid (Large Cup) 29127-1000
1 Standard "SOFT CLOSE" axle and lid (large cup) 58104-2000
2 Compact Toilet Cup (small cup) 29096-0000
2 Standard Toilet Bowl (Large Cup) 29126-0000
3 + 4 Compact pin-bracket-screw kit (small cup) 29098-1000
3 + 4 Standard pin-bracket-screw kit (large cup) 29098-2000
3 + 4 Standard (large cup) "SOFT CLOSE" pin-bracket-screw kit 58105-2000
6 Tube 29035-1001
7 Toilet bowl fixing screw kit 18753-0637
8 Sealing ring 44101-1000
9 Base Toilet 37004-1000
10 Adapter 98023-0080
11 Non-return valve 44106-1000
12 Exhaust connection 44107-1000
13 Screws (3-pack) 91084-0320
14 Shredder 37056-1000
15 Macerator box 37014-0000
16 Toilet Impeller 37006-0000
17 Screws (3-pack) 91084-0320
18 O'ring 43990-0066
20 Screw 91009-0096
21 Screw 91010-0130
22 Gasket 35445-0000
23 Toilet Plate 37018-0000
25 Screws (4-pack) 91027-0011
26 Gasket 12558-0000
27 Nitrile Impeller 6303-0003B
28 Toilet pump body 12554-0000
29 Sealing ring 1040-0000
30 Retainer (pack of 3) 6342-0000
31 12V engine 37064-0000
31 24V motor 37065-0000
33 Toilet switch 37020-0000
34 Engine cover 37003-1000
Repair kit (contains spare parts: 8-11-18-22-23-27) 37040-0000
Engine pump kit (contains spare parts: 15 to 31) 37041-0010
